Product Details:
Payment & Shipping Terms:
|
| Material: | PE, Plastic Film | Bag-making Speed: | 40-120pcs/min |
|---|---|---|---|
| High Light: | Paper Bag Making Machine,cloth bag making machine |
||
Two - layer Rolling Automatic Bag Making Machine For Vest / Flat Bags
Quick Detail:
Model NO. DZB-500
Machine Type: Bag Forming Machine
Bag Type: Shopping Bag
Material: Plastic
Max. Bag-making Width: 400mm
Max. Bag-making Length: 1200mm
Capacity: 40-120pcs/min
Certificate: CE, ISO Certificate
Description:
1. The whole machine adopts microcomputer control and material-pulling by stepping motor(Servomotor control system can also be selected and equipped)
2. Arbitrary fixed-length, accurate and stable step photoelectric tracking stopping automatically when the label is lost, photoelectric control feeding.
3. Automatic counting and set able counting alarm.
4. Automatic constant temperature makes the sealing of bag opening firm and smooth.
5. Non-printing material can make bags in double lines by 4 rolls feeding, making 4 bags in one time.
Specifications:
|
Model of Machine |
DZB-500 |
|
Max. Bag-making Width |
400mm |
|
Max. Bag-making Length |
1200mm |
|
Bag-making Thickness |
0.008-0.10mm |
|
Bag-making Speed |
40-120pcs/min |
|
Motor Power |
1.1 Kw |
|
Electric Heating Power |
1.2Kw |
|
Machinery Dimensions |
3300*1100*1500mm |
|
Machinery Weight |
800KG |
|
Packing Dimension |
3400*1200*1700mm |
|
Packing weight |
1000Kg |
Applications:
This machine is suitable for making high-low pressure vest bags(supermarket hand bags), handbags(for clothes and shoes), disposable medical packing bags and bags for sanitary napkins.(When producing spot cutting-off garbage bags, it can be equipped with rolling machine and spot cutting-off knife dual-purpose device)

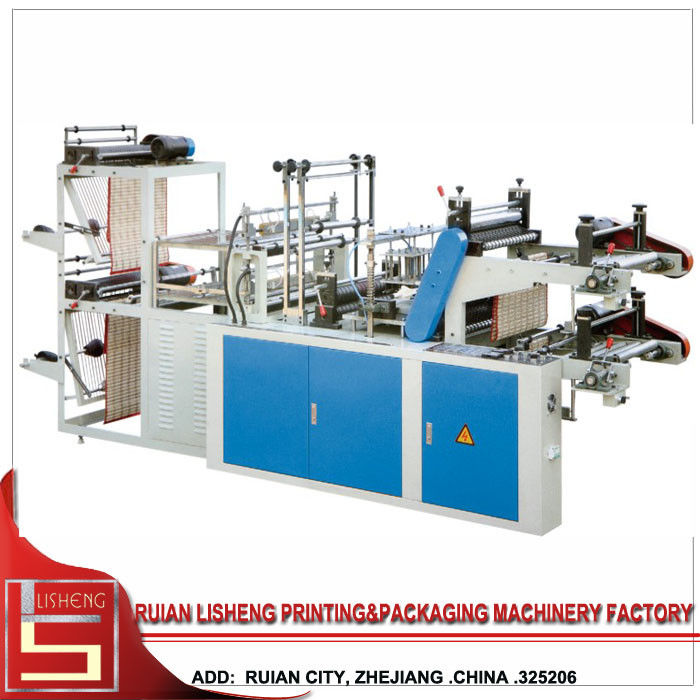

Our Product Show:
