Industrial Solventless Dry Laminating Machine for BOPP / PET / PE

China Industrial Solventless Dry Laminating Machine for BOPP / PET / PE supplier
Industrial Solventless Dry Laminating Machine for BOPP / PET / PE supplier Industrial Solventless Dry Laminating Machine for BOPP / PET / PE supplier Industrial Solventless Dry Laminating Machine for BOPP / PET / PE supplier Industrial Solventless Dry Laminating Machine for BOPP / PET / PE supplier

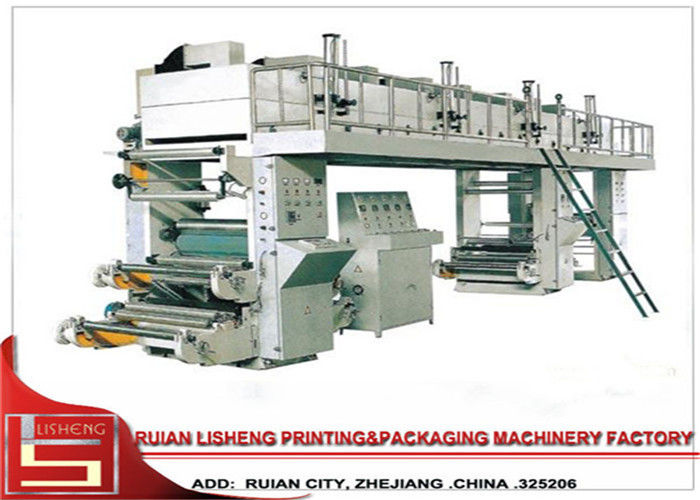

Large Image :  Industrial Solventless Dry Laminating Machine for BOPP / PET / PE

Product Details:

Place of Origin: CHINA
Brand Name: LISHENG
Certification: CE
Model Number: BGF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: wooden case for stanard package
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 20set/month
Contact Now
Detailed Product Description
Width: 600mm 800mm 1000mm Speed: 150m
Control: PLC Control Weight: 5000kg



Industrial Solventless Dry Laminating Machine for BOPP / PET / PE





Quick Detail:



1.Solventless Laminating

2.PLC system

3.Certificate: CE Certificate



Description:



1.Feature                                                                                                                                                 This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon,CPP,CPE aluminum foil and paper, etc.



Applical:

1.Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.
2.Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade
3.Auto tension controller for three section constant tension control.
4.Turret type unwinding station.pre-tension control for non-stop shaft exchange.
5.Unwinding station equipped with EPC system.
6.Turret type rewinding station.pre-tension control for non-stop shaft exchange.
7.Movable doctor blade with pneumatic back pressure
8.Three independent constant temperature section drying system with infra heating tube and air blower, inner circulated intake and exhaust device available to ensure the full dryness of web
9.Pneumatic lifting drying channel and operating platform for web stretch, active synchronous running leading roller inside drying channel.
10.Pre-heating before laminating, water cooling roller for laminated web.
11.Inflatable Air Shaft for web loading/unloading
12.Three rollers nip laminating method .laminating pressure more even to ensure higher peel strength.



Main Technical Parameters

Model

GF600G/GF800G/GF1000G/GF1200G

Max. laminating speed

150m/min

Max. laminating width

600mm/800mm/1000mm/1200mm

Total power

75kw/76kw/80kw/81kw

Weight

8000kg/9000kg/9500kg/10000kg

Dimension(L*W*H)

10800*2200*3600mm/10800*2400*3600mm

10800*2600*3600mm/10800*2800*3600mm
