Full - automatic Non Woven Fabric Printing Machine with Water Ink Printing

China Full - automatic Non Woven Fabric Printing Machine with Water Ink Printing supplier
Full - automatic Non Woven Fabric Printing Machine with Water Ink Printing supplier Full - automatic Non Woven Fabric Printing Machine with Water Ink Printing supplier

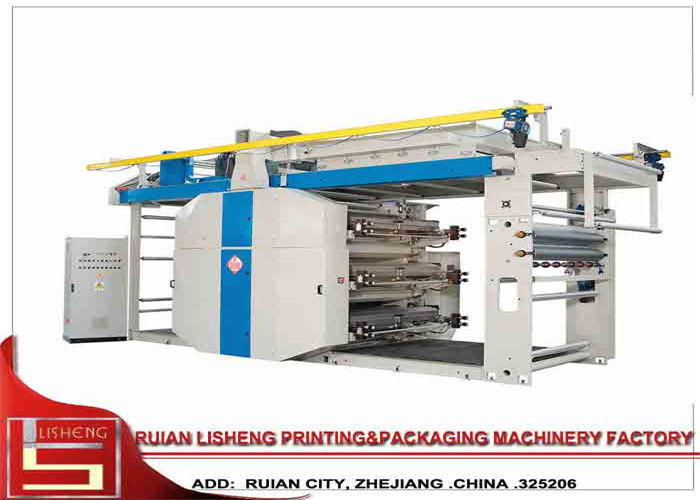

Large Image :  Full - automatic Non Woven Fabric Printing Machine with Water Ink Printing

Product Details:

Place of Origin: CHINA
Brand Name: LS
Certification: CE
Model Number: YTB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden pallte package
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 20set/month
Contact Now
Detailed Product Description
Printing Width: 600 Mm 800mm 1000mm 1200mm 1400mm 1600mm Plate Material: Rubber Or Resin
Printing Color: 1.2.4.6.8 Printing Material Type: Drum Rolling



Full - automatic Non Woven Fabric Printing Machine with Water Ink Printing





Quick Detail:





Model NO. YTB-6600

Printing color: 6color

Printing width: 600mm

Printing material: roll paper, non-woven fabric, PE film and so on

Capacity:80m/min

Suit printing to drum rolling

Certificate: CE, ISO Certificate







Characteristics:



1. Easy operation, flexible staring, accurate color register

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.

3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

4. The printing ink is spread by the anilox cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6. 360 degree ontinuous and adjustable longitudinal register device.

7. The frequency control of motor speed adapts to different printing speeds.

8. There are jogging/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.





Main Technical Variables:





Model of Machine

YTB-6600

Maximum Width of Printing Material

600mm

Max. Printing width

560mm

Master Motor

3.7 Kw

Electrical heater

18Kw

Blower of heater

3 Kw

Printing speed

80m/min

Inking motor

200w

Master frequency converter

3.7Kw

Master power

23Kw

Net weight

6000Kg

Dimension

5500*1900*3000mm







Application:



This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

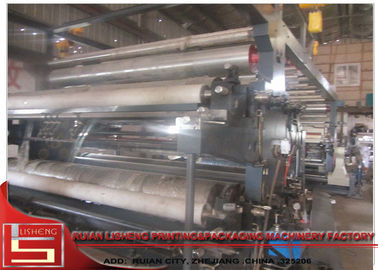

print sample :





Full - automatic Non Woven Fabric Printing Machine with Water Ink Printing
