Material Type: | Drum Rolling | Plate Thickness: | 1.7mm. 2.28mm .3.9mm |
---|---|---|---|
Un&rewinder Diameter: | 1200mm | Operation Way: | Semi-automatic |
Machine Color: | Gray | ||
High Light: | plastic printing machine,rotary printing machine |

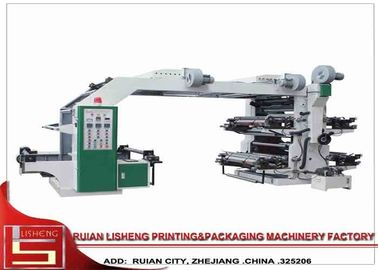

Multi - Color Film Printing Machine For Plastic Bag Making , Plastic Printer
Use:
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
4 color Napkin Paper Printing Machine For Hotel
6 Colour polyethylene printing machine
Characteristics:
1. Reasonable structure, advanced technology, easy operation, stable performance,
accurate color register.
2. Adopting high-quality motor, high-quality inverters, save the electricity, reduce the run fluctuation.
3. The machine is equipped with blower and heater; and the heater employed central temperature control
system.
4. The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after
printing.
5. Roller adopts special steel processing, and through special treatment, greatly reduce the beating range
6. Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment,
small resistance, beating small, achieves finally perfect printing effect.
SUITABLE MATERIAL:
Kraft paper:40-350g/㎡ single-sided coated paper:30-350g/㎡ copy paper:15-350g/㎡
firecrackers and paper:40-350g/㎡ paper money and incense:25-350g/㎡ silicone paper:50-350g/㎡
coated paper:30-350g/㎡ dust-free paper:25-350g/㎡Release paper:40-350g/㎡
composite paper:30-350g/㎡ woven:15-120g/㎡Weave fabric:15-500g/㎡ PVC:10-120g/㎡
OPP:10-120g/㎡ PE :10-120g/㎡PET: 10-120g/㎡CPP:10-120g/㎡
above all material from customer suggestion ,welcome to your advise .
Main Technical Variables:
Model Of Machine | YTB-6600mm |
Max. Material Width | 600mm |
Effective Printing Width | 5-560mm |
Effective Printing Girth Range | 191-1100mm |
Machine Speed | 80m/min |
Printing Speed | 50m/min |
Plate Rollers Lifting System | Automatic |
Cermaic Anilox rollers(LPI) | 300-1000mm |
Register Recision | ±0.15mm |
Unwinder Diameter (Max) | 1200mm |
Rewinder Diameter(Max) | 1200mm |
Main Motor(KW) | 3.7KW |
Ink Motor(KW) | 0.65*6(KW) |
Inverter(KW) | 4KW |

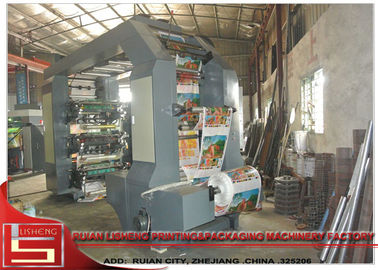

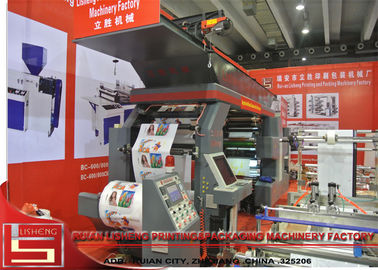

Machine Sample Show Blew:
