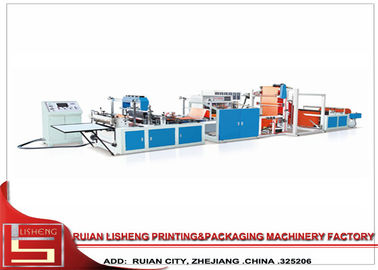

full automatic Non Woven Bag Making Machine With Servo Motor , Ultrasonic Sealing Photocell Tracking

: Large Image : full automatic Non Woven Bag Making Machine With Servo Motor , Ultrasonic Sealing Photocell Tracking

Product Details:

Place of Origin:	CHINA
Brand Name:	LS
Certification:	CE
Model Number:	HBL

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden packing
Delivery Time:	Within 30 working days
Supply Ability:	20sets/month

Contact Now

Detailed Product Description

PLC:	From Taiwan	Operation:	Computer Control
Ultrasonic:	Made In Taiwan	Voltage:	220v
Automatic:	Full Automatic	Bag Type:	Shopping Bag
High Light:	automatic non woven bag making machine , non woven fabric bag making machine

full automatic Non Woven Bag Making Machine With Servo Motor , Ultrasonic Sealing Photocell Tracking

Quick Detail:

Condition: New

Material: Non woven bag

Machine type: Bag forming machine

Bag type: Shopping bag

Power: 12-18 kw

Capacity: 120 pcs/min

Voltage:220v

PLC: From Taiwan

Computerized: Yes

Ultrasonic: Made in Taiwan

Bag process: Ultrasonic Sealing

Warranty: one year

Computerized: Yes

Automatic: Full Automatic

Certification: CE / ISO

Description:

1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.

2. Auto meter counting &stopping, could freely setting number.

3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.

4. High voltage static processor, Auto constant temperature heating controller.

5. This machine has the function of automatic punching.

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.

7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full

completed, fast speed, easy to operate, firm sealing, beautiful and decent.

Specifications:

Nonwoven Bag Making Machine Type	HBL-DB600	HBL-DB700	HBL-DB800
Production Speed	20-120pcs/min	20-120pcs/min	20-120pcs/min
Bag Width	100-800mm	100-800mm	100-800mm
Bag Length	200-480mm	200-580mm	200-680mm
Bag-Making Thickness	30-120g	30-120g	30-120g
Power Supply	380V/220V	380V/220V	380V/220V
Total Power	18KW	18KW	20KW
Overall Dimension (LWH)	8.2m2m2.1m	8.2m2m2.1m	8.2m2.2m2.3m
Weight	2100KG	2300KG	2500KG

Advantages:

non woven fabric bag making machine price	1. The speed is 120pcs/min, faster than old type machine.
	2. The machine is higher reliability, reduced a lot of time for installing.
	3. Machine was shortened by 1 m to save space.
	4. The appearance of m non woven bag making machine cost achine is become more artistic.

Application:

This machine is suitable for non woven fabric material only, it is the most advanced equipment and has the function of full automatic handle loop sealing. The speed is about 20-60 pcs/min, it equals to 5 workers operating 5 handle sealing machines. It can fully automatic make non woven bag products with different bag type and size, as handle attached bags, T-shirt bags (vest bags), flat bags, drawstring bags and so on, except box bags. It has widely used in clothing, footwear, wine, gifts packaging etc. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It’s very popular in worldwide.

Our Product Sample Show:

full automatic Non Woven Bag Making Machine With Servo Motor , Ultrasonic Sealing Photocell Tracking
