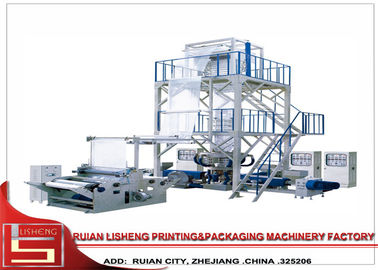

Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Detailed Product Description
| Blow Moulding Type: |
Extrusion Blow Moulding |
Screw Speed: |
15-150r/min |
| Application: |
Film |
Plastic Processed: |
PE |
| Voltage: |
380v |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
| Extrusion Output: |
110-170kg/h |
| High Light: |
film extrusion machine, extrusion blow molding machine |
Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Quick Detail:
Condition: New
Blow Moulding Type: Extrusion Blow Moulding
Plastic Processed: PE
Application: Film
Automatic: Yes
Voltage: 380v
Screw Speed: 15-150r/min
Extrusion Output: 110-170kg/h
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
Description:
1. Die head is layer type spiral mandrel, continuous 360 degree rotation.
2. Screen pack changer design is reliable, safe in operation and change the fitter screen easier.
3. Various functional parts may be installed to the lies., such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
Specifications:
Model | 3SJ-G1000 | 3SJ-G1200 | 3SJ-G1500 | Screw Diameter | φ55*2 φ60*1 | φ60*2 φ65*1 | φ65*2 φ70*1 | Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 | Screw Speed | 15-150r/min | 15-150r/min | 15-150r/min | Power of Main Motor | 15Kw *2 18.5Kw*1 | 18.5Kw *2 22Kw*1 | 22Kw *2 30Kw*1 | | Extrusion Output | 110kg/h | 140kg/h | 170kg/h | | Range of Die | φ150 φ200 | φ200 φ250 | φ250 φ300 | Max.Folding Width of Film | 1000mm | 1200mm | 1500mm | Single-sided Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | ElectricTotal Capacity | 76Kw | 88Kw | 102Kw | Weight of Machine | 6000kg | 8000kg | 10000kg | Overall Dimensions | 6600*4100*5000mm | 6800*4300*6000mm | 7000*4800*7500mm |
|

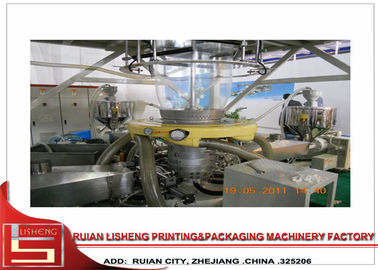

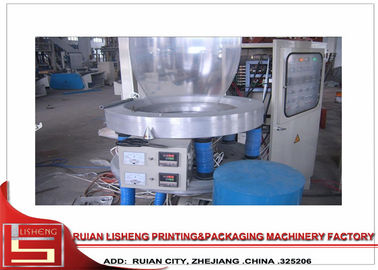

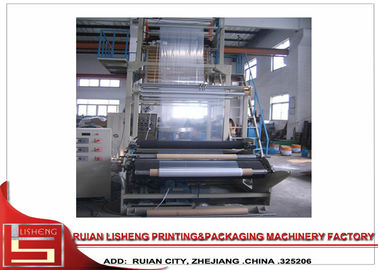

Product Sample:
