|Control:||Computer Control||Total Power:||25kw|
gravure printing machine,
automatic printing machine

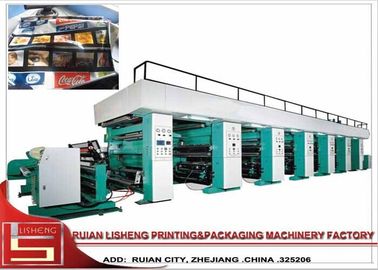

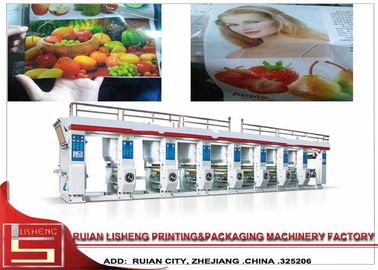

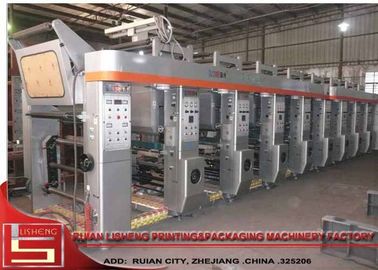

Full Auto Computerized 6 - Color Rotogravure Printing Machine with CE Certificate
Nylon membrane: 15-60μm
Roll paper 30-90gms.
Model No.: GWSY
Plate material :laser to aluminum roller
Power Supply: 380V 50HZ3P
Certificate: CE Certificate
1. Independent tower type double arm duplex position slewing and wall rack combination
2. Independent driving control system: Digital AC frequency control system
3. High speed non-stop change material, save time
4. High-sensitivity tension closed loop control system
5. Install printing cylinder without shaft
6. Independent heating system in every color unit
7. Intelligent continuous constant temperature control.
1. Two-arm duplex turret mount and wall racks.
2. Double unwinding shaft unwind
3. Unwinding shaft independent transmission system adopts imported digital AC vector inverter.
4. PLC tension control and detection system and DANCER stable system, tension stable control.
5. Closed-loop tension control, zero tension control, both low and high speed keep a stable output.
6. Swing roller tension detection in closed-loop control, the feedback signal sent by the Japanese Tamagawa Encoder.
7. High-speed non-stop changing materials, save time, improve efficiency.
8. Reloading when new material shaft driven by ultrasonic automatical detection and host the same speed, automatic cut, expected a high success rate, (OPP.PET waste about 10m or so);
9. Installation uses inflatable shaft, fast replacement, safe and reliable.
10. Roll-over stand automatically roll over to transfer bit to automatic positioning, emergency knife with reset function.
|Model||ASY -850F||ASY -1050F||ASY -1250F|
|Effective printing width||800mm||1000mm||1200mm|
|Max. Width of web||850mm||1050mm||1250mm|
|Max. Printing speed||150m /min||150m/min||150m /min|
|Max. Mechanical speed||200 m /min||180 m /min||180 m /min|
|Max. Diameter of unwind/rewind||800mm||800mm||800mm|
|Inside diameter of roll core||76mm||76mm||76mm|
|Diameter of printing cylinder||120-360mm||120-360mm||120-360mm|
|Accuracy of computer registration||0.1mm||0.1mm||0.1mm|
|Tension control range||20-50kg /Full Width||20-50kg /Full Width||
20 50kg /
|Heating power of oven||120Kw||144Kw||234Kw|
|Weight of machine||31000kg||34000kg||37000kg|
|Overall dimension||L18000xW3800xH 3300mm||L18000xW4000xH 3300mm||
Installation and testing the machines
If the buyer need engineer from the seller's side, the seller should dispatch an engineer to buyer's side. The buyer pays all the expenses including the round air ticket, food and accommodation, and also pays 80$/day for engineer during the install and testing machine period.
