high resolution 8 Color gravure Flexo Printing Machine with slitting station

China high resolution 8 Color gravure Flexo Printing Machine with slitting station supplier
high resolution 8 Color gravure Flexo Printing Machine with slitting station supplier high resolution 8 Color gravure Flexo Printing Machine with slitting station supplier high resolution 8 Color gravure Flexo Printing Machine with slitting station supplier high resolution 8 Color gravure Flexo Printing Machine with slitting station supplier

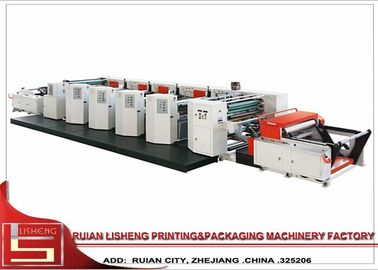

Large Image :  high resolution 8 Color gravure Flexo Printing Machine with slitting station

Product Details:

Place of Origin: CHINA
Brand Name: LS
Certification: CE
Model Number: YH

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD10000-80000/set
Packaging Details: Wooden case packing
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 20sets
Contact Now
Detailed Product Description
Width: 600mm,800mm,1000mm Printing Precision: 0.1mm
Speed: 150m/min Comtrol: PLC
High Light:

digital printing equipment

,

flexo printing machinery



high resolution 8 Color gravure Flexo Printing Machine with slitting station





Specifications:



flexo machine
roll to roll
resin plate
to printi various material



1. Features:

This machine is a printing machine which adopts flexible photosensitive resin plates, rubber plates as the

base material, anil-ox rollers for transferring ink, liquid ink for printing. It is controlled centrally by PLC

system and generally consists of unwinding section, in feed section, printing section, drying section,

out-feed section, rewinding section and control section. This machine is an ideal machine for printing paper

cup, carton, paper bag, paper package, and so on.
2. Advantages:

1.Unwinding station
2.Electronic rectifying system(imported from America)
3.Unwinding braking system(magnetic powder braking-imported original)
4.Manual tension control unit
5.Printing unit
6.Output tension unit
7.Still image inspecting system(imported from America)
8.Catwalk
9.Rewinding unit



OPTIONAL FUNCTION DEVICES:
cassette design in printing stations
non-stop changing unwinder
anti-static bar
corona system
delam & relam self-adhesive labels
reverse printing with turn bar
UV glazing system
cold lamination/foil stamping
vacuum web cleaner
ink pump
enclosed doctor blade system
rotary die-cutter
creasing/embossing/punching/fan-folding
sheeter
slitting
electronic hoist
multiple waste take-up
conveyor
rear rectifying systemimported from America
2nd pass printing
in-line gravure/screen printing



Technical Parameters:



MODEL YH810 YH1000 YH1200
Max.Web Width 825mm 1015mm 1215mm
Max.Printing Width 810mm 1000mm 1200mm
Max.Die-cut Width 810mm 1000mm 1200mm
Printing Repeat Length 260-710mm 260-710mm 260-710mm
Die-cut Repeat Length 260-710mm 260-710mm 260-710mm
Max. Unwinder Diameter 1524mm 1524mm 1524mm
Max. Rewinder Diameter 1524mm 1524mm 1524mm
Gearing Size 1/8CP 1/8CP 1/8CP
Max. Mechanical Speed 152m/min 152m/min 152m/min
OD of Web Roller 100mm 100mm 100mm
Main Drive 15-18kw 20-30kw 20-30kw
Motor
Lubricating System auto auto auto
Air Pressure 0.6mp 0.6mp 0.6mp
Power Required 380v3ph50hz 380v3ph50hz 380v3ph50hz

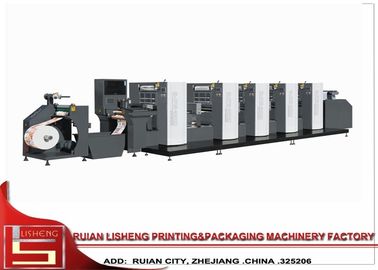

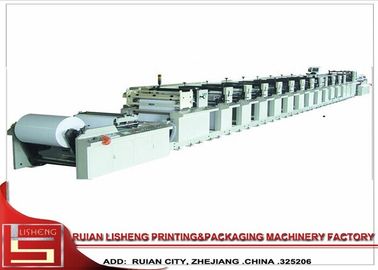

Sample Show



high resolution 8 Color gravure Flexo Printing Machine with slitting stationhigh resolution 8 Color gravure Flexo Printing Machine with slitting station
