Durable High Precision fabric flexo printing machine for cloth bag

China Durable High Precision fabric flexo printing machine for cloth bag supplier
Durable High Precision fabric flexo printing machine for cloth bag supplier Durable High Precision fabric flexo printing machine for cloth bag supplier Durable High Precision fabric flexo printing machine for cloth bag supplier

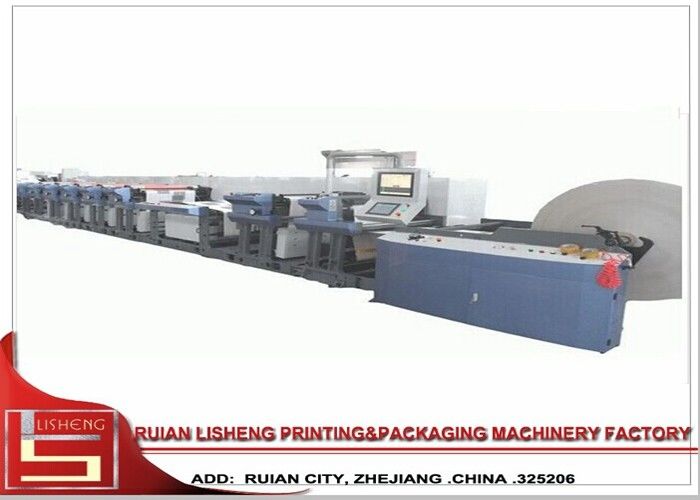

Large Image :  Durable High Precision fabric flexo printing machine for cloth bag

Product Details:

Place of Origin: CHINA
Brand Name: LS
Certification: CE
Model Number: YH

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD10000-80000/set
Packaging Details: Wooden case packing
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 20sets
Contact Now
Detailed Product Description
Width: 600mm,800mm,1000mm Printing Precision: 0.1mm
Speed: 150m/min Comtrol: PLC
High Light:

digital printing equipment

,

flexo printing machinery



Durable High Precision fabric flexo printing machine for cloth bag





Specifications:



flexo machine
roll to roll
resin plate
to printi various material



1. Features:

This machine is a printing machine which adopts flexible photosensitive resin plates, rubber plates as the

base material, anil-ox rollers for transferring ink, liquid ink for printing. It is controlled centrally by PLC

system and generally consists of unwinding section, in feed section, printing section, drying section,

out-feed section, rewinding section and control section. This machine is an ideal machine for printing

paper cup, carton, paper bag, paper package, and so on.
2. Advantages:

1.Unwinding station
2.Electronic rectifying system(imported from America)
3.Unwinding braking system(magnetic powder braking-imported original)
4.Manual tension control unit
5.Printing unit
6.Output tension unit
7.Still image inspecting system(imported from America)
8.Catwalk
9.Rewinding unit



OPTIONAL FUNCTION DEVICES:
cassette design in printing stations
non-stop changing unwinder
anti-static bar
corona system
delam & relam self-adhesive labels
reverse printing with turn bar
UV glazing system
cold lamination/foil stamping
vacuum web cleaner
ink pump
enclosed doctor blade system
rotary die-cutter
creasing/embossing/punching/fan-folding
sheeter
slitting
electronic hoist
multiple waste take-up
conveyor
rear rectifying systemimported from America
2nd pass printing
in-line gravure/screen printing



Technical Parameters:



MODEL YH810 YH1000 YH1200
Max.Web Width 825mm 1015mm 1215mm
Max.Printing Width 810mm 1000mm 1200mm
Max.Die-cut Width 810mm 1000mm 1200mm
Printing Repeat Length 260-710mm 260-710mm 260-710mm
Die-cut Repeat Length 260-710mm 260-710mm 260-710mm
Max. Unwinder Diameter 1524mm 1524mm 1524mm
Max. Rewinder Diameter 1524mm 1524mm 1524mm
Gearing Size 1/8CP 1/8CP 1/8CP
Max. Mechanical Speed 152m/min 152m/min 152m/min
OD of Web Roller 100mm 100mm 100mm
Main Drive 15-18kw 20-30kw 20-30kw
Motor
Lubricating System auto auto auto
Air Pressure 0.6mp 0.6mp 0.6mp
Power Required 380v3ph50hz 380v3ph50hz 380v3ph50hz

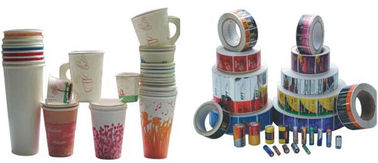

Sample Show



Durable High Precision fabric flexo printing machine for cloth bagDurable High Precision fabric flexo printing machine for cloth bag
