Product Details:
Payment & Shipping Terms:
|
Printing Width: | 600 Mm 800mm 1000mm 1200mm 1400mm 1600mm | Plate Material: | Rubber Or Resin |
---|---|---|---|
Printing Color: | 1.2.4.6.8 | Printing Material Type: | Drum Rolling |
High Light: | printing press machine,non woven fabric machinery |

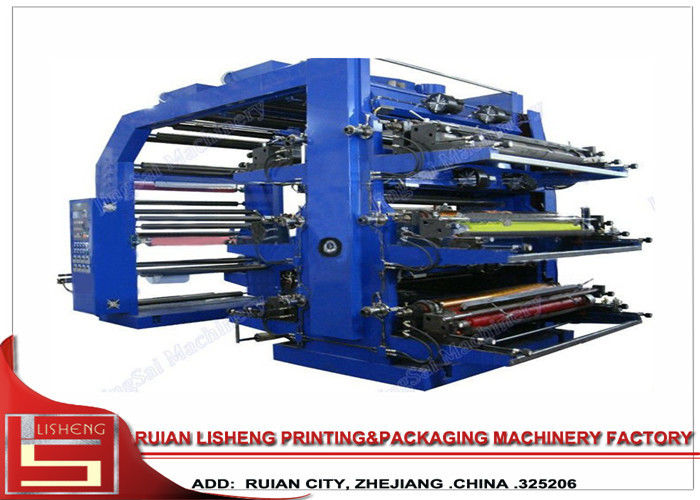

Water Based Ink drum rolling Flexographic Printing Machine / vest bag Flexo printer
Quick Detail:
Model NO. YTB-6600
Printing color: 6color
Printing width: 600mm
Printing material: roll paper, non-woven fabric, PE film and so on
Capacity:80m/min
Suit printing to drum rolling
Certificate: CE, ISO Certificate
Characteristics:
1. Easy operation, flexible staring, accurate color register
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360 degree ontinuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are jogging/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Variables:
|
Application:
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

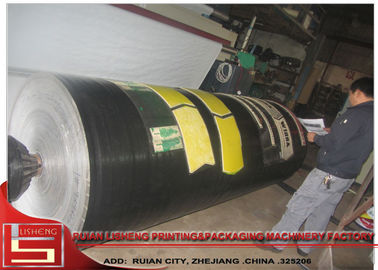

print sample :
