Printing Width: | 600 Mm 800mm 1000mm 1200mm 1400mm 1600mm | Plate Material: | Rubber Or Resin |
---|---|---|---|
Printing Color: | 1.2.4.6.8 | Printing Material Type: | Drum Rolling |
High Light: | High Speed Flexo Printing Machine,2 color flexo printing machine |

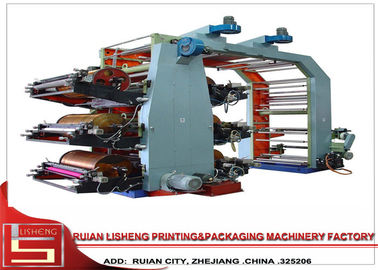

Multi color Standard Flexo Printing Machine with Ink Automatic Cycle
Quick Detail:
Model NO. YTB-61000
Printing color: 6color
Printing width: 1000mm
Printing material: roll paper, non-woven fabric, PE film and so on
Capacity:80m/min
Suit printing to drum rolling
Certificate: CE, ISO Certificate
Characteristics:
1. Easy operation, flexible staring, accurate color register
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360 degree ontinuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are jogging/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Variables:
Model |
YTB 61000mm |
Max. print material width |
10 00mm |
Printing width |
9 60mm |
Printing material |
Paper: 50 ~ 35 0g/m2 |
Printing color |
6 color (6+0) |
Printing length |
7.5"~ 5 0"(190mm~1 0 00mm) |
M e ch a nical speed |
9 0m/min |
Printing speed |
80m/min
|
Register precision |
Longitude:±0.25mm Transverse:±0.25mm |
Rewinder/Unwinder DIA |
Φ 12 00mm (unwinding) |
Printing plate lifting system |
Auto Hydraulic cylinder control printing roll up and down |
EPC system: |
Edge Position Controller, 1 PC |
Tension system |
Automatic tension control for unwinding 1 PCS |
Unwinding loading and rewinding unloading way |
By air shaft , with 10 kg magnetic 2 pcs |
Printing Pressure |
M echanical adjust |
Anilxo roll |
Standard metal anilxo roll (1 0 0-300PLI) blade |
Master motor |
3.7Kw TAIWAN BRAND |
Drying way |
Electrical heat drying |
Drying power |
24 kw |
Blower of nature wind |
0.95 Kw x 6 pcs |
Inking motor |
Taiwan brand |
Master frequency converter |
3.7 kw |
Master power |
32 Kw |
Dimension(L×W×H) |
5.4 ×2. 4× 3.2 m |
Application:
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

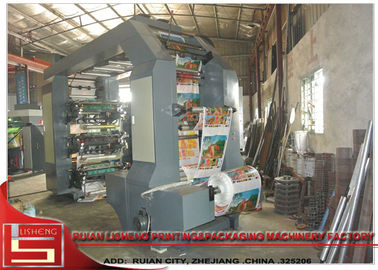

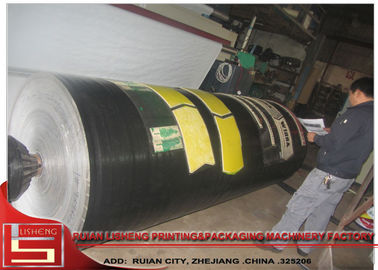

print sample :
