Product Details:
Payment & Shipping Terms:
|
| Model NO.: | YTB-4 | Tension: | Automatic Tension Controller |
|---|---|---|---|
| Printing Roller Lift Up And Down: | By Automatic Hydraulic | Color & Page: | Multi-Colour Printing Press |
| Anilox Roller: | Steel Or Ceramic Anilox Roller | EPC: | Auto EPC |
| Packing: | Film Packing | Production Capacity: | 20-30sets/Month |
| High Light: | digital printing machines,polygraph flexo printing machine |
||

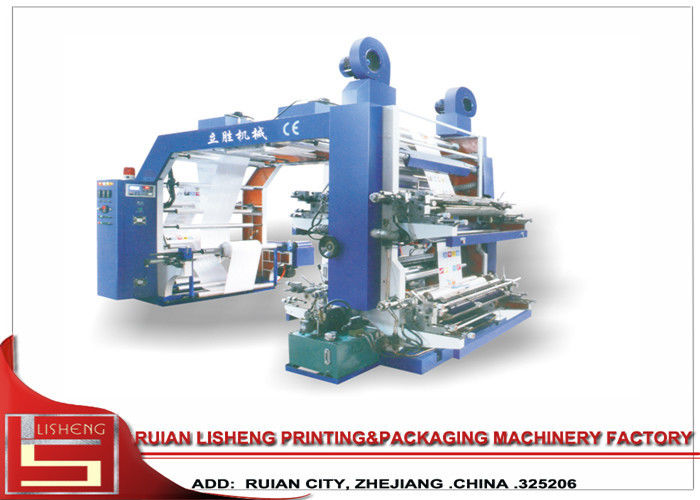

Automatic T Shirt Flexo Printing Machine , cup printing machine
Quick Detail:
Machine frame: 75-100mm
Model No. : YTB-4
Max speed: 80-120m/min
Plate Material: resin plate or rubber
Color& page: Multi-color printing press
Certificate: CE Certificate
Description:
1. Take it easy, accurate color, long life
2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink
4. The use of special diagonal-tooth gear, print size is accurate,
5. There are two sets of heating devices, including central heating and constant temperature control system for packet control
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium
7. Alloy roll with hard oxidation, treating by dynamic balance, static balanced
8. With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. The Prrint produce are clear and good arrangement quality
10. Bearing: NSK, Japan brand, Germany ASNU aluminum alloy roll
Specifications:
|
Model of Machine |
YTB-4 |
|
Max. Width of Printing Material |
600mm-3200mm |
|
Max Printing Length |
280-1000mm |
|
Printing plate lifting system |
Automatic |
|
Mechanical speed |
80-120m/min |
|
Printing Speed |
80-120m/min |
|
Anilox cylinder |
50-1000LPI |
|
Register precision |
±0.05mm |
|
Rewinder&Unwinder DLA |
±800mm |
|
Main Motor |
3.7kw |
|
Weight |
5000kg |
|
Overall Dimension |
5500*1900*3000mm |
Applications:
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Our printing effect:
