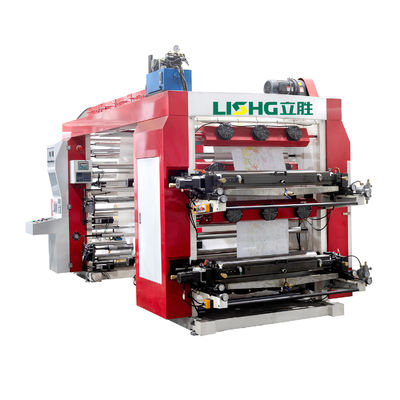

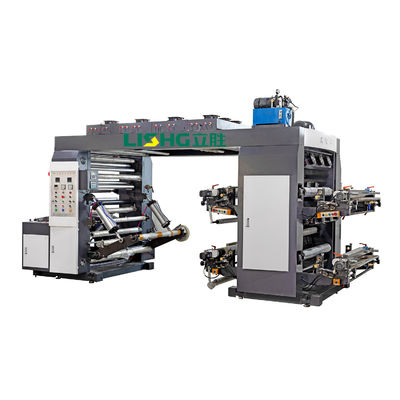

Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print

China Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print supplier
Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print supplier Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print supplier Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print supplier Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print supplier

Large Image :  Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print

Product Details:

Place of Origin: CHINA
Brand Name: LISHENG
Certification: CE
Model Number: YTB

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD20000-50000/SET
Packaging Details: FILM PACKING
Delivery Time: 45days before deposit
Payment Terms: L/C, T/T,Western Union, MoneyGram,
Supply Ability: 20set/month
Contact Now
Detailed Product Description
Print Color: 4 Print Width: 600mm 800mm 1000mm 1200mm 1400mm And More
Print Speed: 80-100m/min Machine Speed: 120m/min
Machine Frame Thickness: 75mm Heating: Closed Type
Automatic Grade: Semi-Automatic Type: 4 Color Flexo Nylon Flour Bag Printing Machine/paper Bag Printer
Usage: Paper Printer Weight: 5000kg
Dimensions(l*w*h): 5.5m*2.2m*2.5m Voltage: 220V/380V/440V
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Gross Power: 50kw Warranty: 1 Year
Machine Type: Stack Model Application: Printing
Plate Thickness: 1.7/2.28/3.84mm Color: Multicolor,6 Color
Printing Material: Paper,pp,PE, PVC PP And Etc,

4COLOR STACK TYPE FLEXO PRINTING MACHINE, SUITABLE FOR PAPER, PLASTIC FILM NON WOVEN FABRIC AND SO ON

Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print

Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print

Main parameter:

Model YTB High speed flexographic printing machine
Material feeding stardard width 600mm,800mm,1000mm,1200mm,1400mm,1600mm
Relative max printing width 560mm,760mm,960mm,1160mm,1360mm,1560mm
Printing length Standard is within 400mm, Customized is available from 300-1016mm (16''~40'')
Max Printing speed 100m/min according to material and print design
Max machine speed 120m/min
Register precision ±0.25mm
Color printing system 4 color (4+0,3+1,2+2)
Material Non-woven fabric. Paper, Film (PVC. OPP. PE. BOPP. NY. PET. CPP)...
Structure type Stack
Transmission of printing rollers Helical gear
Machine transmission way Synchronous belt
Drying method Blower and heater
Max. oven temp. Max. 80ºC(room temp. 20ºC)with temperature control system
Web fixing method for un/rewinder Safety chuck+ Air expanding shaft
Thickness of plate (including two-sided glue paper) 1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm... customized is available
Gear module 5mm
Unwinder/rewinder air shaft core 3"
Max.unwinder/rewinder dia. 1000mm
Adhesive tape thickness for stick printing cylinder 0.38mm according to you
Suitable Ink Water based ink / Solvent ink
Machine weight Customized
Machine Size Customized
HS code 8443160090


Characteristics:

  1. Easy operation, flexible starting, accurate color register.
  2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
  3. Manual printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
  4. The printing ink is spread by the anilox cylinder with even ink color.
  5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
  6. 360°continuous and adjustable longitudinal register device.
  7. The frequency control of motor speed adapts to different printing speeds.
  8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Print sample

Plastic film, like HDPE, LDPE, BOPP and so onLisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print

Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print

Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll PrintLisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print

Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print



Certificate

Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print

Machine in client factory

Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print

Our production dept

Lisheng 4 Colors Double Face Flexo Printing Machine Plastic film Roll to Roll Print
