Product Details:
Payment & Shipping Terms:
|
Blow Moulding Type: | Extrusion Blow Moulding | Max. Output: | 220kg/h |
---|---|---|---|
Screw Ratio L/D: | 28:1 | Speed Of Screw: | 10-100r/min |
Thickness Of Film (mm): | 0.01-0.10 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Warranty: | One Year | ||
High Light: | plastic blown film machine,film extrusion machine |

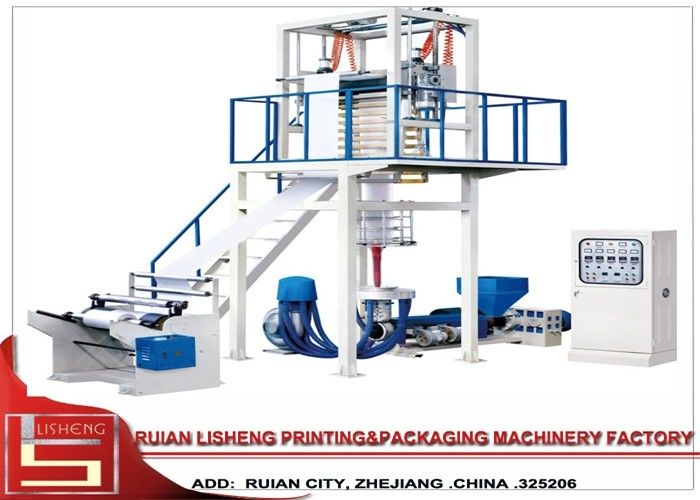

High Output Film Blowing Machine For LDPE / HDPE , film extrusion machine
Quick Detail:
Condition: New
Blow Moulding Type: Extrusion Blow Moulding
Application: Film
Automatic: Yes
Screw Ratio L/D : 28:1
Max. Output : 220kg/h
Speed of Screw: 10-100r/min
Thickness of film (mm) : 0.01-0.10
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
Description:
1. Frequency inverters to control the main motor and traction motor, speed adjustable, energy saving.
2. Gear box adopts China national standard hard teeth gear box, involutes cylinder bevel wheel, cast alloy steel piston, fine grinding hard gear surface, with cooling system.
3. Screw material 38CrMoAlA, adopts double times nitrogen treatment, HV≥740, nitrogen depth 0.7mm. Barrel material 38CrMoAlA, adopts nitrogen treatment, HV≥900.
4. Heating loops adopts stainless steel and cast aluminum heating loops, with turbo fan cooling.
5. Die head hard chrome-plated Mca45 mold steel making. Mirror surface channel. With independent temperature controller in die head.
6. Air ring all aluminum alloy made.
7. Machine framework adopts thick square steels, high stability.
8. Rewinder station steel boards adopt whole plate boards, able to hold heavy film roller.
9. Machine has CE certification and our factory passed ISO management certification, machine quality is guaranteed.
10. For more machine functions, we also have 360°rotary die head system, double stations rewinder, suction feeding and drying system, filter changer, auto.roll change rewinder for option. etc.
Specifications:
Model |
ASJ-50 |
ASJ-55 |
ASJ-60 |
ASJ-65 |
ASJ-75 |
ASJ-100 |
Max. tubular film width |
600mm |
800mm |
1000mm |
1200mm |
1500mm |
2000mm |
Main Output |
25-35kg |
35-50kg |
55-65kg |
55-70kg |
70-80kg |
200-220kg |
Main motor power |
11kw |
15kw |
18.5kw |
22kw |
30kw |
55kw |
Screw Diameter |
50mm |
55mm |
60mm |
65mm |
75mm |
100mm |
L/D ratio of screw |
28:1 |
28:1 |
28:1 |
28:1 |
28:1 |
28:1 |
Speed of screw |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
Film thickness |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
Die head |
55/75mm |
60/80mm |
120/160mm |
120/220mm |
150/320mm |
500mm |
Die type |
Fixed |
Fixed |
Fixed |
Fixed |
Fixed |
Fixed |
Winder |
One station |
One station |
One station |
One station |
One station |
One station |
Weight of machine |
2000kg |
2300kg |
3200kg |
3800kg |
5600kg |
7500kg |
Overall Dimensions[L*W*H] |
4.5*1.8*3.5m |
5.5*2.0*3.8m |
6.0*2.2*4.2m |
6.0*2.4*4.3m |
7.0*2.7*5.8m |
8.0*3.2*8.2m |
Application:
This machine is PE Plastic film blowing machine for blowing several kinds PE plastic film, like LDPE, LLDPE, HDPE, etc.
The PE film made by this machine can be used as packing film, agricultural film, making bags. etc.

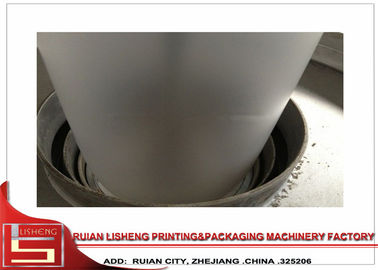

Product Sample:
