Product Details:
Payment & Shipping Terms:
|
Color: | 1-6 Color | Width: | 320/450nn |
---|---|---|---|
Dry: | UV System | Speed: | 60m/min |
High Light: | rotary label printing machine,digital label printing machines |

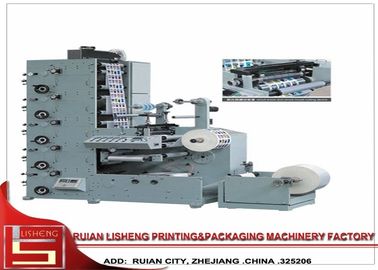

economic Mult Color sticker printing machine with computer control
Characteristics:
1. The main motor adopts imported inverter to govern a stepless speed adjustment.
2. Feeding and rewinding are controlled through magnetic particle brake and clutch(Japanese Mitsubishi auto tension controller)
3. Unwinder system is controlled by edge guide sensor.
4. Adopt ceramic anilox roller which offers durability,wear resistance and corrosion resistance,also is more efficient on production by reducing the times of changing rollers.
5. The printing unit can register in 360 degrees. Each printing unit can be independently geared and loosen to have rest of units continue to printing.
6. The printing units are all equipped with a group of infrared dryers respectively.
7. Each IR dryer device of printing unit is Interchangeable to UV dryer.
8. Unwinder and rewinder adopt air coreholder.
9. The inking roller will be automatically off impression when press stop and rotate at lower speed in order to keep the ink from being drying.
10. The roll feeding,printing,UV vanish,auto infrared drying,laminating and rewinding can be processed in one pass.It has characterized by wide application,fast printing speed and high economic efficiency ink will not contaminate environment.So it is an idea printing machine for the business form,Tag and high end pressure sensitive label.
Feature:
1. The high speed label flexo printing machine main motor adopts imported inverter
to given a speed adjustment.
2. Feeding and rewinding are controlled through magnetic partied brake and clutch
(Japanese Mitsubishi auto tension controlled).
3. Unwind system is controlled by edge guide sensor.
4. Adopt ceramic anliox roller, which offers durability, wear resistance and corrosion resistance,
also is more efficient on production by reducing the times of changing rolls.
5. The printing can register in 360 degrees, each printing unit can be in dependent geared and
loosen to have rest of units continue to printing.
6. The printing unit are all equipped with a group of infrared dryers respectively.
7. Each IR dryer device of printing unit is interchangeable to UV dryer.
8. Unwind and rewind adopt air core holder.
9. The inking roller will be automatically off impression when press stop and rotate in order keep
the ink form being drying.
10. The roll feeding, printing, UV vanish auto infrared drying laminating rewinding can be processed
in one pass.
11. It has characterized by wide application, fast printing speed and high economic efficiency ink
will not contaminate environment.
12. It is main used for printing business form, tag and high end pressure sensitive label.
Main technical parameter:
Model | RY6-320 | RY6-450 |
Printing speed | 60(m/min) | 60(m/min) |
Printing color | 6(color) | 6(color) |
Max web width | 320mm | 450mm |
Max printing width | 310mm | 440mm |
Max unwind diameter | 600mm | 600mm |
Max rewind diameter | 550mm | 550mm |
Printing length | 143 -330mm | 143 -330mm |
Overprint Precision | ± 0.1mm | ± 0.1mm |
Overall dimensions (L×W×H) | 2200×1100× 3200mm | 2200×1500× 3200mm |
Machine weight | 2700kg | 3500kg |
Power | 380V/AC(Three-phase)50H | 380V/AC(Three-phase)50H |
Total power | 11KW(UV) | 14KW(UV) |
