Product Details:
Payment & Shipping Terms:
|
Printing Width: | 600 Mm 800mm 1000mm 1200mm 1500mm | Plate Material: | Rubber Or Resin |
---|---|---|---|
Printing Color: | 1.2.4.6.8 | Printing Material Type: | Drum Rolling |
High Light: | flexo print machine,4 color flexo printing machine |

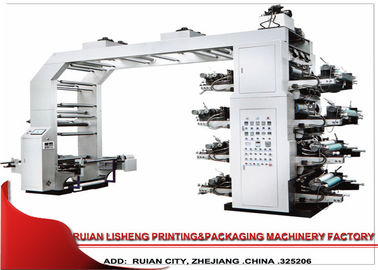

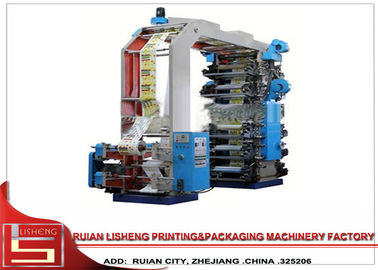

Colorful Both Side Paper Flexo Printing Machine For Non Woven Fabric / PP / OPP Material
Quick Detail:
Model NO. YTB-8600
Printing color: 8color
Printing width: 600mm
Printing material: roll paper, non-woven fabric, PE film and so on
Capacity:80m/min
Suit printing to drum rolling
Certificate: CE, ISO Certificate
Application:
Flexo printing machine for paper
Flexo printing machine for film
One color flexo printing machine for drum rolling material
Characteristics:
1. Roller adopts special steel processing, and through special treatment.
2. Printing roller uses static balance and dynamic balance processing, hard anode oxidation
treatment, small resistance, beating small, achieves finally perfect printing effect.
3. Accurate printing effect achieved by special gear transmission device.
4. The printing machine all can choose advance configurations to achieve the high quality, the
high-definition effect.
Main Technical Variables:
Model of Machine |
YTB-8600 |
Maximum Width of Printing Material |
600mm |
Max. Printing width |
560mm |
Master Motor |
3.7 Kw |
Electrical heater |
18Kw |
Blower of heater |
3 Kw |
Printing speed |
80m/min |
Inking motor |
200w |
Master frequency converter |
3.7Kw |
Master power |
30Kw |
Net weight |
8000Kg |
Dimension |
5500*1900*3700mm |
print sample :
