Product Details:
Payment & Shipping Terms:
|
Printing Width: | 600 Mm 800mm 1000mm 1200mm 1500mm | Plate Material: | Rubber Or Resin |
---|---|---|---|
Printing Color: | 1.2.4.6.8 | Printing Material Type: | Drum Rolling |
High Light: | rotary printing machine,plastic film printing machine |

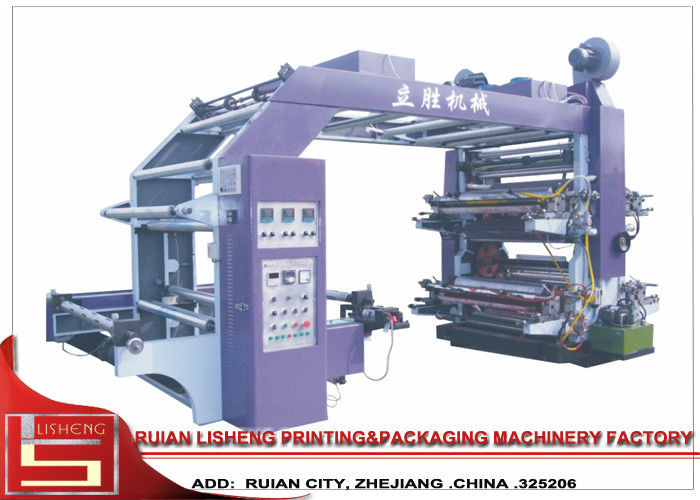

Doctor Blade Film Printing Machine with CE / ISO approved , 80 M /MIN
Quick Detail:
Model NO. YTB-4600
Printing color: 4 color
Printing width: 600mm
Printing material: paper, non-woven, PE film and so on
Capacity:80m/min
Suit printing to drum rolling
Certificate: CE, ISO Certificate
Characteristics:
1. Roller adopts special steel processing, and through special treatment.
2. Printing roller uses static balance and dynamic balance processing, hard anode oxidation
treatment, small resistance, beating small, achieves finally perfect printing effect.
3. Accurate printing effect achieved by special gear transmission device.
4. The printing machine all can choose advance configurations to achieve the high quality, the
high-definition effect.
Main Technical Variables:
Model of Machine |
YTB-4600 |
Maximum Width of Printing Material |
600mm |
Max. Printing width |
560mm |
Master Motor |
3.7Kw |
Electrical heater |
15Kw |
Blower of heater |
3Kw |
Printing speed |
80m/min |
Inking motor |
200w |
Master frequency converter |
3.7Kw |
Master power |
21Kw |
Net weight |
5000Kg |
Dimension |
5500*1900*3000mm |
Application:
Flexo printing machine for paper
Flexo printing machine for film
One color flexo printing machine for drum rolling material
print sample :
