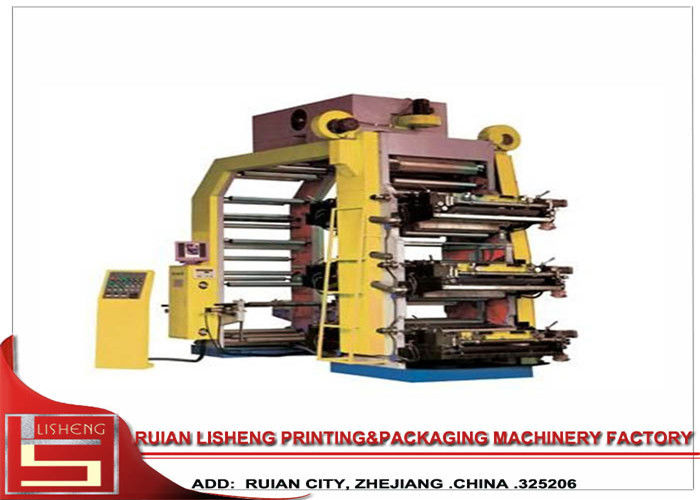

Auto Hydraulic Cylinder Standard Flexo Printing Machine With EPC system

China Auto Hydraulic Cylinder Standard Flexo Printing Machine With EPC system supplier
Auto Hydraulic Cylinder Standard Flexo Printing Machine With EPC system supplier Auto Hydraulic Cylinder Standard Flexo Printing Machine With EPC system supplier Auto Hydraulic Cylinder Standard Flexo Printing Machine With EPC system supplier

Large Image :  Auto Hydraulic Cylinder Standard Flexo Printing Machine With EPC system

Product Details:

Place of Origin: CHINA
Brand Name: LS
Certification: CE
Model Number: YTB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden pallte package
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 20set/month
Contact Now
Detailed Product Description
Printing Width: 600 Mm 800mm 1000mm 1200mm 1400mm 1600mm Plate Material: Rubber Or Resin
Printing Color: 1.2.4.6.8 Printing Material Type: Drum Rolling
High Light:

flexo printing press

,

High Speed Flexo Printing Machine



Auto Hydraulic Cylinder Standard Flexo Printing Machine With EPC system





Quick Detail:





Model NO. YTB-61000

Printing color: 6color

Printing width: 1000mm

Printing material: roll paper, non-woven fabric, PE film and so on

Capacity:80m/min

Suit printing to drum rolling

Certificate: CE, ISO Certificate







Characteristics:



1. Easy operation, flexible staring, accurate color register

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.

3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

4. The printing ink is spread by the anilox cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6. 360 degree ontinuous and adjustable longitudinal register device.

7. The frequency control of motor speed adapts to different printing speeds.

8. There are jogging/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.





Main Technical Variables:





Model

YTB 61000mm

Max. print material width

10 00mm

Printing  width

9 60mm

Printing material

Paper:  50 ~ 35 0g/m2

Printing color

6  color  (6+0)

Printing length

7.5"~ 5 0"(190mm~1 0 00mm)

M e ch a nical speed

9 0m/min

Printing speed

80m/min



Register precision

Longitude:±0.25mm  Transverse:±0.25mm

Rewinder/Unwinder DIA

Φ 12 00mm  (unwinding)
Φ 13 00mm  (rewinding)

Printing plate lifting system

Auto Hydraulic cylinder control printing roll up and down

EPC  system:

Edge Position Controller, 1 PC

Tension system

Automatic tension control for unwinding  1 PCS

Unwinding loading and rewinding unloading way

By air shaft , with  10 kg magnetic 2 pcs
With 1.5 kw  motor compages rewinding

Printing  Pressure

M echanical adjust

Anilxo roll

Standard metal anilxo roll (1 0 0-300PLI)
Or
High: ceramic anilox roller ( 3 00-800lpi), single doctor

 blade

Master motor

3.7Kw TAIWAN BRAND

Drying way

Electrical heat drying

Drying power

24 kw

Blower of nature wind

0.95 Kw x 6 pcs
75W x 12 pcs

Inking motor

Taiwan brand

Master frequency converter

3.7 kw

Master power

32 Kw

Dimension(L×W×H)

5.4 ×2. 4×  3.2 m








Application:



This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

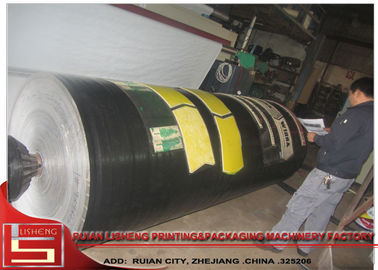

print sample :





Auto Hydraulic Cylinder Standard Flexo Printing Machine With EPC system
