Product Details:
Payment & Shipping Terms:
|
| Blow Moulding Type: | Extrusion Blow Moulding | Machinery: | Plastic Blowing Machines |
|---|---|---|---|
| Application: | Film | Plastic Processed: | PE |
| Voltage: | 380v/ 50Hz | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | plastic blown film machine,extrusion blow molding machine |
||

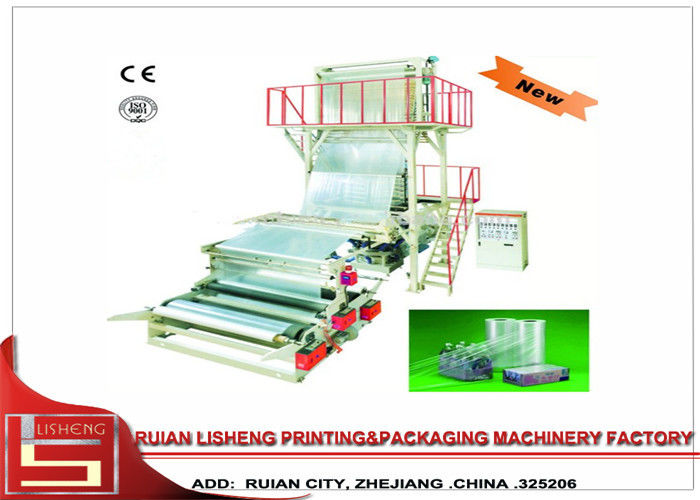

Automatic Plastic film extrusion machine with high speed , 15-100r/min
Quick Detail:
Condition: New
Blow Moulding Type: Extrusion Blow Moulding
Machinery: Plastic Blowing Machines
Application: Film
Automatic: Yes
Voltage: 380v/ 50Hz
Plastic Processed: PE
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
Description:
1. This film blowing machines is designed to produce plastic film made of low density polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE).
2. The film blowing machine is designed reasonably and elegantly. It is small and is easy to operate and maintain.
3. With high output, low energy consumption, good stability and reliability.
4. The products are widely used in application of package of civil and industrial products such as food, garment, textile and daily necessities etc. It includes vest bag, shopping bag, garment bag and food bag.
Specifications:
|
Model |
SJ-75 |
SJ-90 |
SJ-120 |
|
Screw diameter |
Φ75 |
Φ90 |
Φ120 |
|
Screw ratio L/D |
28:1 |
28:1 |
28:1 |
|
Screw speed |
15-100r/min |
15-100r/min |
15-100r/min |
|
Main motor power |
30kw-37kw |
37kw-45kw |
45kw-55kw |
|
Extrusion output(single) |
120kg/h |
145kg/h |
200kg/h |
|
Range of die |
Φ150 Φ350 |
Φ500 |
Φ550 |
|
Single-sided thickness of film |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
|
Max folding width of film |
1500mm |
2000mm |
2300mm |
|
Electric total capacity |
58kw |
80kw |
105kw |
|
Overall dimension |
5200×3500×6000 |
6800×4000×8500 |
7000×4800×9000 |
|
Weight of machint |
4.0T |
8.5T |
8.5T |
Application:
It is used for blowing high-low pressure polyethylene,which has been widely used for producing laminating film,packing film,agricultural covering film,bag or film for textile and clothing and other packing material,the main motor adopts frequency control of motor speed to timprove the speed regulating stadility of main motor and save electricity by 30%,the screw and material barrel adopt38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type,no matter what size the film is big or small,lt can achieve the best effect of cooling .

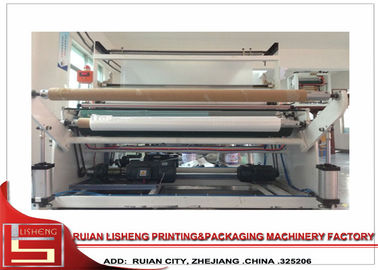

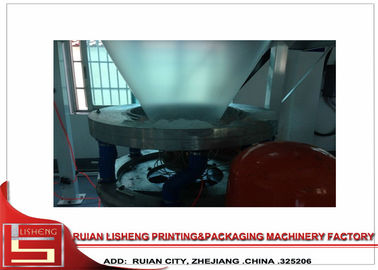

Product Sample:
