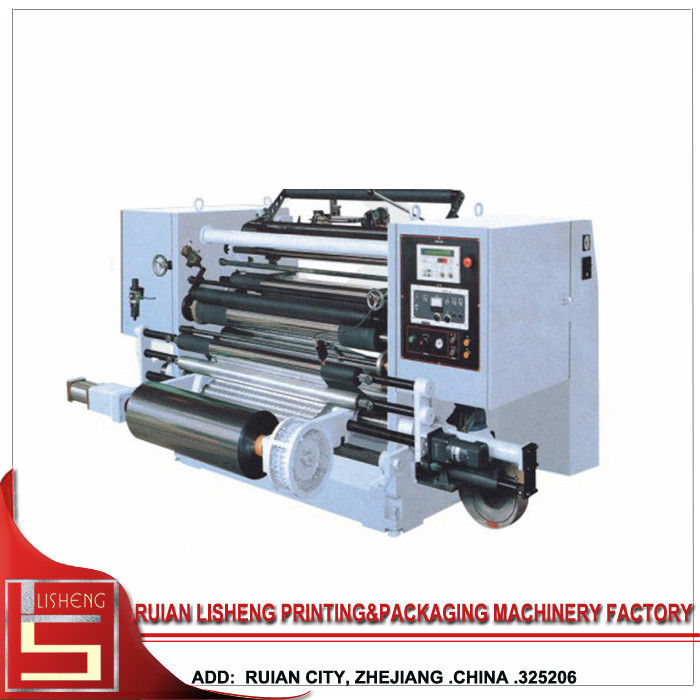

Fully Automatic High Speed Paper Slitting Machine , 1100 / 1300 / 1600mm

Large Image : Fully Automatic High Speed Paper Slitting Machine , 1100 / 1300 / 1600mm

Product Details:

Place of Origin:	CHINA
Brand Name:	LS
Certification:	CE
Model Number:	LFQ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	1000-5000USD
Packaging Details:	Wooden case
Delivery Time:	1 month
Payment Terms:	L/C, T/T
Supply Ability:	25sets

Contact Now

Detailed Product Description

Width:	900mm,1100mm,1300mm	Control:	PLC Xontrol
Speed:	200m/min	Material:	Paper, Plastic Film
High Light:	slitter rewinder machine , film slitting machine

Width:

900mm,1100mm,1300mm

Control:

PLC Xontrol

Speed:

200m/min

Material:

Paper, Plastic Film

High Light:

slitter rewinder machine

film slitting machine

Fully Automatic High Speed Paper Slitting Machine , 1100 / 1300 / 1600mm

Quick Detail:

Auto tension control

Magnetic power

Speed:200m/min

Certificate: CE Certificate

Performance and Characteristics:

This machine is used for slitting and rewinding various large rolling materials such as paper,kraft paper,coated paper,aluminum foil,plastic material,etc

1.This machine adopts PLC touch screen control.Three motor vector control and automatic taper tension,central surface reeling.Frequency converter timing for main motor,keeping speed up and stable operation.

2.It has the functions of auto metering,automatic alarm.Adopt A and B pneumatic shaft structure for rewinding,easy for loading and unloading.

3.It adopts photoelectric automatic error correction adjustment system for unwinding,anomalistic materials will be easy slit.(or liquid press style subtense system)

4.Equipped with automatic waste film blowing device.

5.Automatic material loading by hydraulic,matched with inflatable shaft.(3' or 6') or pneumatic non-shaft device.

Specifications:

Type	LFQ-700A	LFQ-1100A	LFQ-1300A
Max. Width of Mother Roll	700mm	1100mm	1300mm
MAX. Diameter of Mother Roll	Φ600mm	Φ600mm	Φ600mm
Width of Final Roll	30-600mm	30-600mm	30-600mm
Slitting and Rewinding Speed	5-160m/min	5-160m/min	5-160m/min
Tolerance of EPC	<±0.5mm	<±0.5mm	<±0.5mm
Total Power	2.7kw	3.5kw	3.5kw
Weight of Machine	1200kg	1500kg	1800kg
Overall Dimension	2000×1110×1400mm	2400×1110×1400mm	2600×1110×1400mm
