2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers

China 2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers supplier
2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers supplier 2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers supplier 2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers supplier 2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers supplier

Large Image :  2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers

Product Details:

Place of Origin: CHINA
Brand Name: LS
Certification: CE
Model Number: ASJ

Payment & Shipping Terms:

Minimum Order Quantity: one set
Packaging Details: Wooden packing
Delivery Time: Within 30 working days
Contact Now
Detailed Product Description
Blow Moulding Type: Extrusion Blow Moulding Max. Output: 220kg/h
Screw Ratio L/D: 28:1 Speed Of Screw: 10-100r/min
Thickness Of Film (mm): 0.01-0.10 After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: One Year
High Light:

plastic blown film machine

,

extrusion blow molding machine



2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers


Quick Detail:

Condition: New
Blow Moulding Type: Extrusion Blow Moulding
Application: Film
Automatic: Yes
Screw Ratio L/D : 28:1
Max. Output : 220kg/h
Speed of Screw: 10-100r/min

Thickness of film (mm) : 0.01-0.10
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas


Description:



1. Frequency inverters to control the main motor and traction motor, speed adjustable, energy saving.



2. Gear box adopts China national standard hard teeth gear box, involutes cylinder bevel wheel, cast alloy steel piston, fine grinding hard gear surface, with cooling system.



3. Screw material 38CrMoAlA, adopts double times nitrogen treatment, HV≥740, nitrogen depth 0.7mm. Barrel material 38CrMoAlA, adopts nitrogen treatment, HV≥900.



4. Heating loops adopts stainless steel and cast aluminum heating loops, with turbo fan cooling.



5. Die head hard chrome-plated Mca45 mold steel making. Mirror surface channel. With independent temperature controller in die head.



6. Air ring all aluminum alloy made.



7. Machine framework adopts thick square steels, high stability.



8. Rewinder station steel boards adopt whole plate boards, able to hold heavy film roller.



9. Machine has CE certification and our factory passed ISO management certification, machine quality is guaranteed.



10. For more machine functions, we also have 360°rotary die head system, double stations rewinder, suction feeding and drying system, filter changer, auto.roll change rewinder for option. etc.




Specifications:


Model

ASJ-50

ASJ-55

ASJ-60

ASJ-65

ASJ-75

ASJ-100

Max. tubular film width

600mm

800mm

1000mm

1200mm

1500mm

2000mm

Main Output

25-35kg

35-50kg

55-65kg

55-70kg

70-80kg

200-220kg

Main motor power

11kw

15kw

18.5kw

22kw

30kw

55kw

Screw Diameter

50mm

55mm

60mm

65mm

75mm

100mm

L/D ratio of screw

28:1

28:1

28:1

28:1

28:1

28:1

Speed of screw

10-100r/min

10-100r/min

10-100r/min

10-100r/min

10-100r/min

10-100r/min

Film thickness

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

Die head

55/75mm

60/80mm

120/160mm

120/220mm

150/320mm

500mm

Die type

Fixed

Fixed

Fixed

Fixed

Fixed

Fixed

Winder

One station

One station

One station

One station

One station

One station

Weight of machine

2000kg

2300kg

3200kg

3800kg

5600kg

7500kg

Overall Dimensions[L*W*H]

4.5*1.8*3.5m

5.5*2.0*3.8m

6.0*2.2*4.2m

6.0*2.4*4.3m

7.0*2.7*5.8m

8.0*3.2*8.2m



 Application:






This machine is PE Plastic film blowing machine for blowing several kinds PE plastic film, like LDPE, LLDPE, HDPE, etc.

The PE film made by this machine can be used as packing film, agricultural film, making bags. etc.

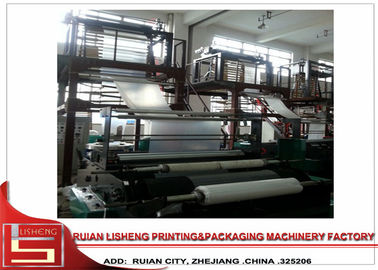

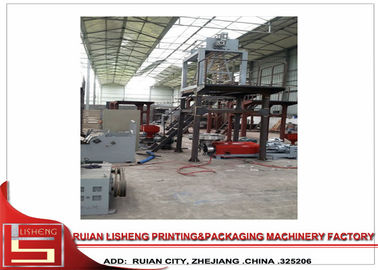

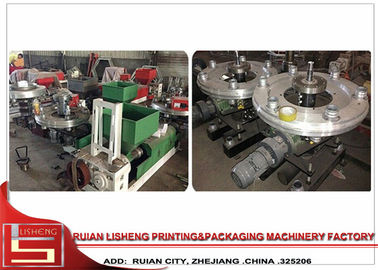

Product Sample:


2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers2 color Co - extrusion HDPE / LD / PE Film Blowing Machine with Two Layers
