Single Doctor Blade Standard Flexo Printing Machine , 80m/min

China Single Doctor Blade Standard Flexo Printing Machine , 80m/min supplier
Single Doctor Blade Standard Flexo Printing Machine , 80m/min supplier Single Doctor Blade Standard Flexo Printing Machine , 80m/min supplier Single Doctor Blade Standard Flexo Printing Machine , 80m/min supplier

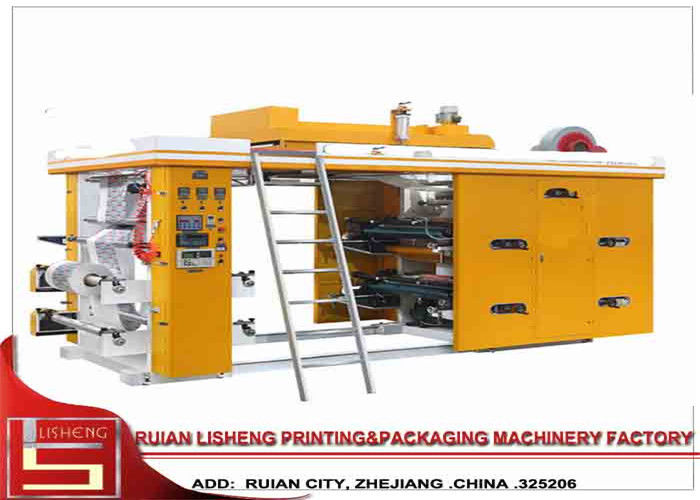

Large Image :  Single Doctor Blade Standard Flexo Printing Machine , 80m/min

Product Details:

Place of Origin: CHINA
Brand Name: LS
Certification: CE
Model Number: YTB

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Wooden packing
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 20sets
Contact Now
Detailed Product Description
Width: 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm Speed: 80m/min
Control: PLC Power: 30kw


Single Doctor Blade Standard Flexo Printing Machine , 80m/min


Quick Detail:

Model NO. YTB-41000
Printing color: 4 color
Printing width: 1000mm
Printing material: paper, non-woven, PE film and so on
Capacity:80m/min
Suit printing to drum rolling
Certificate: CE, ISO Certificate


The main features:

1. Take it easy, accurate color, long life.
2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.
4. Use special diagonal-tooth gear, accurate printing size.
5. Two sets of heating devices, including central heating and constant temperature control system for

 group control.
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective

layer of hard chromium.
7. Alloy roll with hard oxidation, treating by dynamic balance, static balanced.
8. With cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. Print produce are clear and good arrangement quality.
10. Bearing: NSK, Japan Brand, Germany ASNU aluminum alloy roll



 Specification:

ModelYTB-41000mm
Max. material width1000mm
Printing  width960mm
Printing materialPaper:  50 ~ 35 0g/m2
Printing color4  color
Printing length7.5"~ 5 0"(190mm~1 5 00mm)
M e ch a nical speed80m/min
Printing speed1 0m- 80m/min
Register precisionLongitude:±0.25mm  Transverse:±0.25mm
Rewinder/Unwinder DIAΦ 800mm  (unwinding)
Φ 800mm  (rewinding)
Printing plate lifting systemAuto Hydraulic cylinder control printing roll up and down
EPC  system:Edge Position Controller, 1 PC
Tension systemAutomatic tension control for unwinding  1 PCS
Unwinding loading and rewinding unloading wayBy air shaft , with  10 kg magnetic 2 pcs
With 1.5 kw  motor compages rewinding
Printing  PressureM echanical adjust
Anilxo roll

Standard metal anilxo roll (1 0 0-300PLI). High: ceramic
anilox roller ( 3 00-800lpi), single doctor blade

Master motor3.7Kw TAIWAN BRAND
Drying way Electrical heat drying
Drying power24 kw
Blower of nature wind0.95 Kw x 6 pcs
20W x 12 pcs
Inking motorTaiwan brand
 Master frequency converter3.7 kw
Master power30 Kw
Dimension(L×W×H)5×2.8×  2.5m

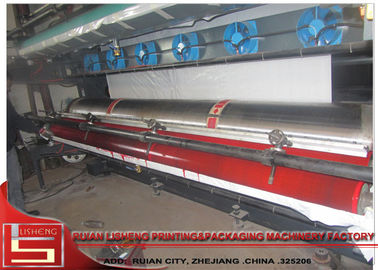

Printing Sample
Single Doctor Blade Standard Flexo Printing Machine , 80m/min

Single Doctor Blade Standard Flexo Printing Machine , 80m/min
