Product Details:
Payment & Shipping Terms:
|
| Print Color: | 1-6 | Print Width: | 600mm 800mm 1000mm |
|---|---|---|---|
| Print Speed: | 80m/min | Machine Speed: | 100m/min |
| Machine Frame Thickness: | 75mm | Heating: | Closed Type |
| High Light: | digital printing machines,polygraph flexo printing machine |
||

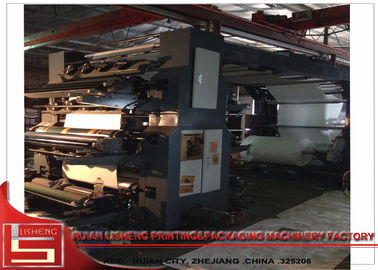

Six Color Flexo Printing Machine / Plastic film printing machine
The Flexography Printing Machine is suitable for printing such packing materials polyethylene, polyethylene plastic bag, glass paper and web, etc. And it is the ideal printing equipment for producing paper packing bag for food, supermarket handbag, and clothes bag etc.
1. Easy operation, flexible starting, accurate color register.
2. The number counter can set printing quantity as required. Stop the machine a automatically at the set quantity or when the material is cut off.
3. Lift ad lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is transmitted by the cobweb barrel with even ink color.
5. Reliable drying system coordinated with high-speed rotation will automatically break the circuit when the machine stops.
6. 360 degree Continuous and adjustable longitudinal register device.
7. The imported frequency conversion control of motor for speed adopts to different printing speeds.
8. There are "Run"& "Stop"buttons on the plate roller base and material drawing-in rack so as to make it easy for operating the machine when the plate is installed
|
Model |
Printing Color |
Printing Width |
Printing Length |
Printing Speed |
Thickness of plate |
Dimension of Machinery |
|
|
YTB-6600 |
6 |
560mm |
191 -1000mm |
5 -80m /min |
2.28mm |
4300x1600x 2400mm |
|
|
YTB-6800 |
6 |
760mm |
191 -1000mm |
5 -80m /min |
2.28mm |
4300x1800x 2800mm |
|
|
YTB-61000 |
6 |
960mm |
191 -1000mm |
5 -80m /min |
2.28mm |
4300x2000x 2800mm |
|
