2 Colors Automatic Flexo Print Machine Resin Or Rubber Plate

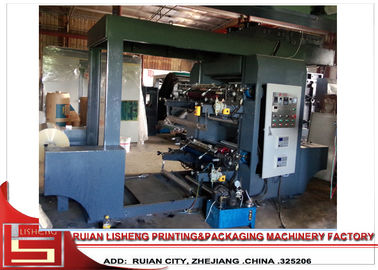

Large Image : 2 Colors Automatic Flexo Print Machine Resin Or Rubber Plate

Product Details:

Place of Origin:	China
Brand Name:	LISHG
Certification:	CE， ISO
Model Number:	YTB-2800

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	USD 10000-30000
Packaging Details:	film packing
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	20-30sets/ month

Contact Now

Detailed Product Description

Colors:	Double Faced Multi Colors, 2 Colors	Plate:	Resin Or Rubber
Structure:	Stack	Printing Width:	600mm-3200mm
Export Market:	Global	Automatic Grade:	Automatic
Speed:	80m/min	Type:	Flexo Printing
Suitable Material:	Plastic Film，paper，non-woven	Function:	Printing Papers
Brand:	Lisheng Printing Company	Description:	Printing Press For Sale
High Light:	flexo print machine , 6 color flexo printing machine

Use:

This YTB-21000 high speed 2 colors Fabric flexo printing machines for printing Non woven fabric bag manufactured by lisheng printing company, is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, non woven bag etc.

Characteristics:

Reasonable structure, advanced technology, easy operation, stable performance, accurate color
register.
Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
When the machine is stopped working, printing rolls still keep moving; when rise the printing roller ,
ink motor running automatically ;when fallen the printing roller, ink motor stop running automatically.
The machine is equipped with blower and heater; and the heater employed central temperature
control system.
.The use of individual drying oven and cold wind system can effectively prevent the ink adhesion
after printing.
.Roller adopts special steel processing, and through special treatment, greatly reduce the beating
range.
Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment,
small resistance, beating small, achieves finally perfect printing effect.
.Accurate printing effect achieved by special gear transmission device.
The printing machine all can choose advance configurations to achieve the high quality, the high-
definition effect.

SUITABLE MATERIAL:

Kraft paper:40-350g/㎡ single-sided coated paper:30-350g/㎡ copy paper:15-350g/㎡ firecrackers and paper:40-350g/㎡ paper money and incense:25-350g/㎡ silicone paper:50-350g/㎡ coated paper:30-350g/㎡ dust-free paper:25-350g/㎡Release paper:40-350g/㎡ composite paper:30-350g/㎡

woven:15-120g/㎡ Weave fabric:15-500g/㎡

PVC:10-120g/㎡ OPP:10-120g/㎡ PE :10-120g/㎡PET: 10-120g/㎡CPP:10-120g/㎡

Main parameter:

Technical Specification
Model	YTB-21000
Material feeding width	1000mm
Max Printing Width	960mm
Material	Non-woven fabric. Paper. Film. Aluminium foil. PVC .OPP.PE.BOPP.PE.NY.PET.CPP.
Thickness of plate	1.7mm 2.28mm 3.94mm
Printing length	280-1000mm
Printing speed	80m/min
Register precision	±0.03mm

Feeding material part:

1 , roller length: 1000mm

2, effective printing roller length: 960mm

3, roller core diameter: 76mm

4, discharge maximum diameter: 1000mm

Printing sections:

1, printing consists of: plate roller, ceramic anilox roller, rubber roller, doctor blade

2, plate roller circumference: 100-1000mm, standard less than 400mm

3, print material: resin plate or rubber plate

4, Transmission: 0 helical gear drive

5, printing chromatography: 360-degree rotation

6, adjustment method: Manual

7, rise and fall of plate roller: Hydraulic

Electrical parts:

1 ,Main Motor: 2.2kw

2, Ink Motor: 0.75kw

3, Speed using frequency converter control

Rewinding Part:

1, roll core diameter: 76mm

2, discharge maximum diameter: 1000mm

Here is some detail picture below.Hope can make you know more about our machine.

Details:

Plate roller 1, standard 400mm for machine , making 2, plate range 191--1000mm. 3, Made in plate factory from Ruian city 4, Can be customized.
Rubber Roller 1, Transport the ink to Anilox roller
Auto tension control &magnetic power 1, Control un&rewind parts balance material both side.
Air shaft 1, tight to material ,flat material , better printing
Web guide 1, Swift tracking print photo . 2, We have Ultrasonic web guide this year.(pay extra money)
Doctor Blade 1,Not spill the ink Equip with ink pump, even the ink Also have enclosed doctor blade
Ink pump 1, Suck the ink automatically 2, Adop the automatic circle system.
Ceramic Anilox Roller 1, Transfer ink evenly, improve the printing effect. 2, 300-600 lines/in
hydraulic Up and down for printing roller 1, Adopt the hydraulic pressure rising and down the printing plate automatically

The main list of detailed configuration

The main list of detailed configuration

Remark:the main motor and key parts can change which brand as your request.

1. Main motor(frequency control of motor speed):1pc (China brand)

2. Link operation motor: 1pc (China brand)

3. Control speed motor: 1pc (China brand)

4. Inverter of main motor:1set(China)

5. Air fan (shanghai feng yang brand)

6. Ceramic dictyonotic roller:1pc/color(china brand)

7. Auto tension:1set(shanghai)

8. Air shaft: 1set(rui an brand of China)

9. Aluminum roller: 1set(shanghai,surface oxidation, motion and quietness equalization treatment)

10. Magnetic power:1set (rui an)

11. Rubber roller:1pc/color ( our factory)

12 .low-voltage apparatus:(CHNT)

13. Switch: CHNT

14. bearing:1set (China)

15. EPC system:1set (dong deng)

Optional Optional Device(need extra money to get perfect machine)

Optional device(need extra money to get perfect machine)
1. PLC Control
2. Auto pneumatic/hydraulic loading&unloading. It is easy to transport material.
3. Joist barrow It’s easy to lift the materials
4. Video Inspection Check the printing quality on the video screen.
