Photoelectric Correcting doctor blade Dry Laminating Machine for fabric

China Photoelectric Correcting doctor blade Dry Laminating Machine for fabric supplier
Photoelectric Correcting doctor blade Dry Laminating Machine for fabric supplier Photoelectric Correcting doctor blade Dry Laminating Machine for fabric supplier Photoelectric Correcting doctor blade Dry Laminating Machine for fabric supplier Photoelectric Correcting doctor blade Dry Laminating Machine for fabric supplier

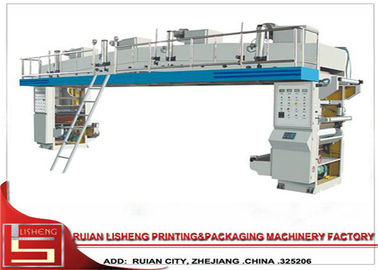

Large Image :  Photoelectric Correcting doctor blade Dry Laminating Machine for fabric

Product Details:

Place of Origin: CHINA
Brand Name: LISHENG
Certification: CE
Model Number: BGF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: wooden case for stanard package
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 20set/month
Contact Now
Detailed Product Description
Width: 600mm 800mm 1000mm Speed: 150m
Control: PLC Control Weight: 5000kg
High Light:

dry film laminator machine

,

extrusion lamination machine



Photoelectric Correcting doctor blade Dry Laminating Machine for fabric





Performance and Characteristics:



1.Double frequency conversing synchronic timing is adopted for entry port of main machine, making more stable operation.

2.Two means of glue applying, webbing roll sizing and rubber roll gluing.

3.Oil warming system for composite reel, constant temperature control

4.Double reeling and double unreeling, tension magnetic powder for reeling and unreeling, photoelectric 5.error correction for unreeling.

6.4-sect heating in drying tunnel, possible to control temperature by segments, initiative guiding roll in box.

7.unwindig with auto tension and EPC contorl.

8.shaft-less type anilox roller loading.



Applical:



1. Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.
2.Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade
3. Auto tension controller for three section constant tension control.
4.Turret type unwinding station.pre-tension control for non-stop shaft exchange.
5. Unwinding station equipped with EPC system.
6. Turret type rewinding station.pre-tension control for non-stop shaft exchange.
7. Movable doctor blade with pneumatic back pressure
8. Three independent constant temperature section drying system with infra heating tube and air blower, inner circulated intake and exhaust device available to ensure the full dryness of web
9. Pneumatic lifting drying channel and operating platform for web stretch, active synchronous running leading roller inside drying channel.
10. Pre-heating before laminating, water cooling roller for laminated web.
11. Inflatable Air Shaft for web loading/unloading
12. Three rollers nip laminating method .laminating pressure more even to ensure higher peel strength.



Feature

1. omponent: face material unwinding, bottom material unwinding, composite film rewinding all use magnetic powder break tension control system, composite rewinding use torque motor
2. Meters, laminating speed and tension auto display
3. Glue and laminating use double frequency synchronization
4. Single position unwind and rewind
5. ectric, photo, air integrated design, have perfect security function

6.

dependent motor drive coating roller, coating roller synchronous and substep switch automatically
7. Arch oven, bottom open



Main Technical Parameters



Model

BGF-600

BGF-800

BGF-1000

Width of laminating

600mm

800mm

1000mm

Number of layers

2Layers

2Layers

2Layers

Laminating speed

10-150m/min

10-150m/min

10-15C0m/min

Unwinding Diameter

750mm

750mm

750mm

Dry oven temperate

120 °C

120 °C

120 °C

Total Power

48kw

52kw

58kw

Weight

7500kb

8200kb

8900kg

Overall dimensions

(L x W x H) mm

9600x2400x3300

9600x2650x3300

9600x2850x3300

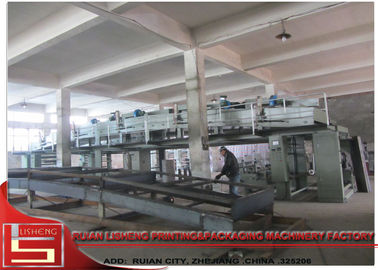

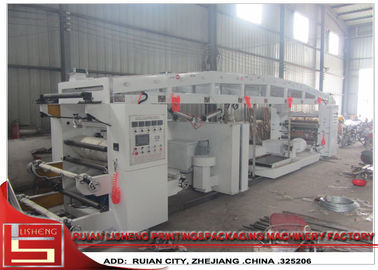

Samples show



Photoelectric Correcting doctor blade Dry Laminating Machine for fabric



Photoelectric Correcting doctor blade Dry Laminating Machine for fabric
