Product Details:
Payment & Shipping Terms:
|
| Blow Moulding Type: | Extrusion Blow Moulding | Material: | LDPE, HDPE |
|---|---|---|---|
| Application: | Film | Plastic Processed: | PE |
| Voltage: | 380v | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Double Color | ||
| High Light: | film laminating machine,extrusion lamination machine |
||
Mid - Speed automatic Dry Laminating Machine , extrusion lamination machine for film
Quick Detail:
Condition: New
Blow Moulding Type: Extrusion Blow Moulding
Speed: High Speed
Material: LDPE, HDPE
Application: Film
Automatic: Yes
Voltage: 380v
Plastic Processed: PE
Color: Double Color
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
Description:
1. It is used for blowing various low density polyethylene (LDPE) and high density polyethylene(HDPE)
color striped plastic film, etc. Which are widely used for packing food, fruit, garments, textile, daily
necessities and other civil and industrial products.
2. The cylinder and the screw stem of Model SJ-45D×2 extruder are made of high-quality alloy steel with
optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. 600
auxiliary machine can be freely adjusted within the limits of 600mm according to the technological
requirements of different materials, and has been fitted with a plug-in plate mechanism for making
vest bag.
3. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Specifications:
Model | 45×2 | 50×2 | 55×2 |
Diameter of Screw | φ45×2 | Φ50×2 | Φ55×2 |
Max. Width of Folded Film(mm) | 100-600 | 200-800 | 300-1000 |
Single-face Thickness of Film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max. Extrusion(kg/h) | 35 | 50 | 65 |
L/D | 28:1 | 28:1 | 28:1 |
Power of Main Motor(kw) | 15 | 18.5 | 22 |
Power of Traction Motor(kw) | 1.1 | 1.1 | 1.5 |
Heating Power(kw) | 15 | 18 | 25 |
Overall Dimensions(mm) | 4800×1900×4100 | 5500×2100×4700 | 6500×2300×4900 |
Weight(T) | 2T | 2.5T | 3T |

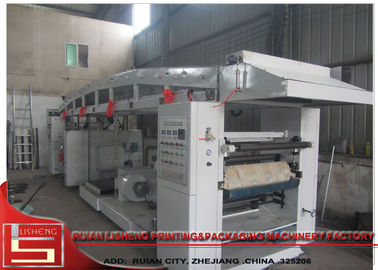

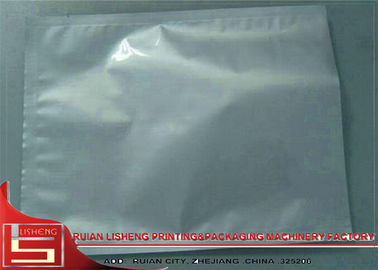

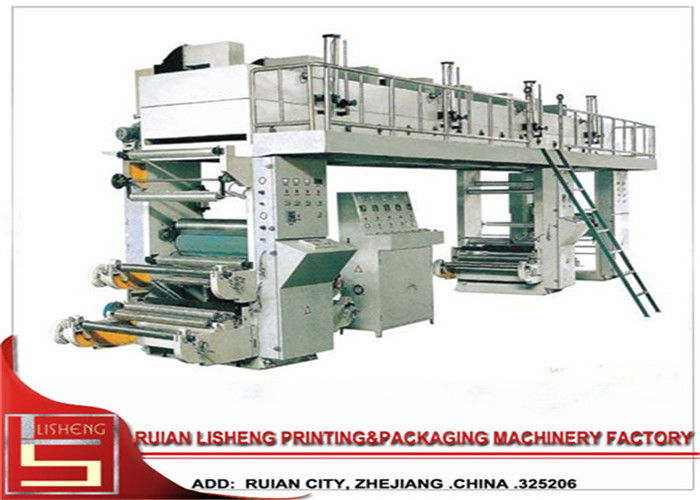

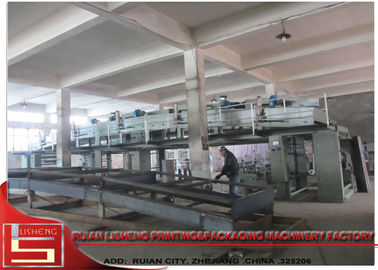

Product Sample:
