Double - shaft Dry Laminating Machine , paper lamination machine

China Double - shaft Dry Laminating Machine , paper lamination machine supplier
Double - shaft Dry Laminating Machine , paper lamination machine supplier Double - shaft Dry Laminating Machine , paper lamination machine supplier Double - shaft Dry Laminating Machine , paper lamination machine supplier

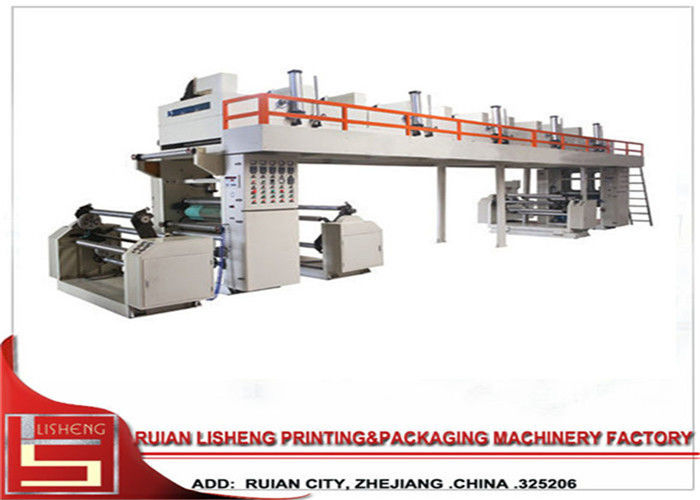

Large Image :  Double - shaft Dry Laminating Machine , paper lamination machine

Product Details:

Place of Origin: CHINA
Brand Name: LISHENG
Certification: CE
Model Number: GFA

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: wooden case for stanard package
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 20set/month
Contact Now
Detailed Product Description
Width: 600mm 800mm 1000mm Speed: 150m
Control: PLC Control Weight: 5000kg
High Light:

film laminating machine

,

dry film laminator machine



Double - shaft Dry Laminating Machine , paper lamination machine





USE:


Machines in this series are suitable for reel-shape materials such as BOPP,PET,CPP,aluminum foil,and paper,2-layer repetitious laminating,high strength production,producing high-quality compound materials with high freshness preserving,and boiling & steaming resistance
FEATURE:
1. Double frequency conversing synchronic tming is adopted for entry port of main machine,making more stable operation.
2. Two means of glue applying, cobwebbing roll sizing and ruber roll gluing
3. Top air style oven open,initiative guiding roll in oven
4. 4-sect heating ing drying tunnel,possible to control temperature by segments
5. Photoelectric error correctiong for unreeling,with automatic tension
6. Reeling and unreeling by tumbling dual-station mechanism,realizing auto material chiange without machine halt.
7. Oil waming system for composite reel,constant temperature control.
Min technical parameters:



Applical:



1. Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.
2.Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade
3. Auto tension controller for three section constant tension control.
4. Turret type unwinding station.pre-tension control for non-stop shaft exchange.
5. Unwinding station equipped with EPC system.
6. Turret type rewinding station.pre-tension control for non-stop shaft exchange.
7. Movable doctor blade with pneumatic back pressure
8. Three independent constant temperature section drying system with infra heating tube and air blower, inner circulated intake and exhaust device available to ensure the full dryness of web
9. Pneumatic lifting drying channel and operating platform for web stretch, active synchronous running leading roller inside drying channel.
10. Pre-heating before laminating, water cooling roller for laminated web.
11. Inflatable Air Shaft for web loading/unloading
12. Three rollers nip laminating method .laminating pressure more even to ensure higher peel strength.



Feature

1. omponent: face material unwinding, bottom material unwinding, composite film rewinding all use magnetic powder break tension control system, composite rewinding use torque motor
2. Meters, laminating speed and tension auto display
3. Glue and laminating use double frequency synchronization
4. Single position unwind and rewind
5. ectric, photo, air integrated design, have perfect security function

6.

dependent motor drive coating roller, coating roller synchronous and substep switch automatically
7. Arch oven, bottom open



Main Technical Parameters



Model:

GFA-600A

GFA-800A

GFA-1000A

Max. laminating width

600mm

800mm

1000mm

Max. diameter of unwinder

Φ500mm

Φ500mm

Φ500mm

Laminating layer

2

2

2

Speed

5~90m/min

5~90m/min

5~90m/min

Max. temperature of dryer

90°C

90°C

90°C

Max. temperature of cylinder

80°C

80°C

80°C

Total power

40kw

52kw

65kw

Machine’s weight

5000kg

6000kg

7000kg

Overall dimension

6500*1600*3600mm

6500*1800*3600mm

6500*2000*3600mm

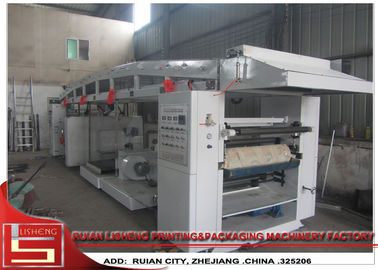

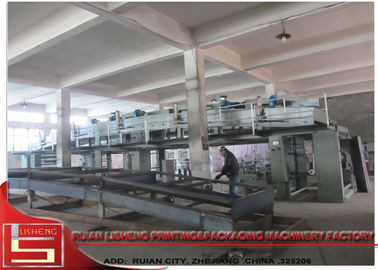

Samples show



Double - shaft Dry Laminating Machine , paper lamination machine



Double - shaft Dry Laminating Machine , paper lamination machine
