Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

China Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure supplier
Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure supplier Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure supplier Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure supplier

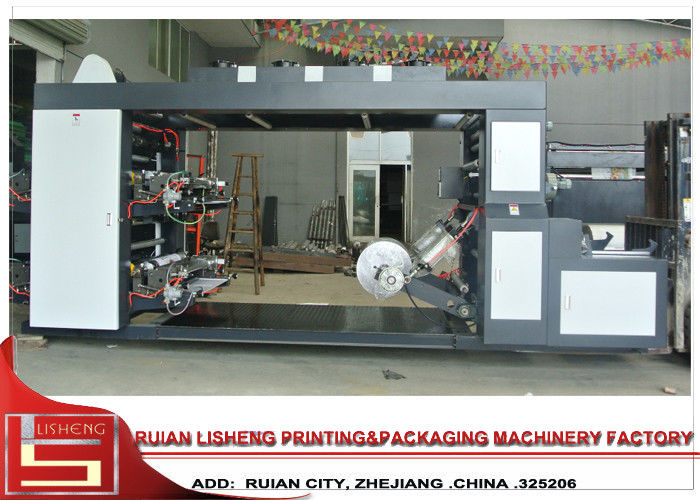

Large Image :  Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

Product Details:

Place of Origin: China
Brand Name: LISHG
Certification: CE, ISO
Model Number: YTB-4600

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: USD 10000-30000
Packaging Details: film packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20-30sets/ month
Contact Now
Detailed Product Description
Colors: Double Faced Multi Colors,four Colors Plate: Resin Or Rubber
Structure: Stack Printing Width: 600mm-3200mm,600mm
Export Market: Global Automatic Grade: Automatic
Speed: 80m/min Type: Flexo Printing
Suitable Material: Plastic Film,paper,non-woven Function: Printing Paper Bag And Paper Cover
Brand: Lisheng Printing Company

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure



Printing Sample picture

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure



Use:

This YTB-4800 high speed 4 colors paper flexo printing machines manufactured by lisheng printing company,  is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.



Characteristics:

  1. Reasonable structure, advanced technology, easy operation, stable performance, accurate color
  2.  register.
  3. Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
  4. When the machine is stopped working, printing rolls still keep moving; when rise the printing roller
  5. ,ink motor running automatically ;when fallen the printing roller, ink motor stop running automatically.
  6. The machine is equipped with blower and heater; and the heater employed central temperature
  7. control system.
  8. .The use of individual drying oven and cold wind system can effectively prevent the ink adhesion
  9.  after printing.
  10. .Roller adopts special steel processing, and through special treatment, greatly reduce the beating
  11.  range.
  12. Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment,
  13. small resistance, beating small, achieves finally perfect printing effect.
  14. .Accurate printing effect achieved by special gear transmission device.
  15. The printing machine all can choose advance configurations to achieve the high quality, the
  16.  high-definition effect.

SUITABLE MATERIAL:

Kraft paper:40-350g/㎡ single-sided coated paper:30-350g/㎡ copy paper:15-350g/㎡ firecrackers and paper:40-350g/㎡ paper money and incense:25-350g/㎡ silicone paper:50-350g/㎡ coated paper:30-350g/㎡ dust-free paper:25-350g/㎡Release paper:40-350g/㎡ composite paper:30-350g/㎡

woven:15-120g/㎡   Weave fabric:15-500g/㎡

PVC:10-120g/㎡ OPP:10-120g/㎡ PE :10-120g/㎡PET: 10-120g/㎡CPP:10-120g/㎡



Main parameter:

Technical Specification

Model

YTB-4600

Material feeding width

600mm

Max Printing Width

560mm

Material

Non-woven fabric. Paper. Film. Aluminium  foil. PVC.OPP.PE.BOPP.PE.NY.PET.CPP.

Thickness of plate

1.7mm 2.28mm 3.94mm

Printing length

280-1000mm

Printing  speed

80m/min

Register precision

±0.03mm



Feeding material part:

1 , roller length: 600mm

2, effective printing roller length: 560mm

3, roller core diameter: 76mm

4, discharge maximum diameter: 1000mm



Printing sections:

1, printing consists of: plate roller, ceramic anilox roller, rubber roller, doctor blade

2, plate roller circumference: 100-1000mm, standard less than 400mm

3, print material: resin plate or rubber plate

4, Transmission: 0 helical gear drive

5, printing chromatography: 360-degree rotation

6, adjustment method: Manual

7, rise and fall of plate roller: Hydraulic



Electrical parts:

1, Main Motor: 2.2kw

2, Ink Motor:  0.75kw

3, Speed using frequency converter control



Rewinding Part:

1, roll core diameter: 76mm

2, discharge maximum diameter: 1000mm





Here is some detail picture below.Hope can make you know more about our machine.

Details:

Plate roller

1, standard 400mm for machine , making

2,  plate range 191--1000mm.

3, Made in plate factory from Ruian city

4, Can be customized.

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

Rubber Roller



1, Transport the ink to Anilox roller



Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

Auto tension control

&magnetic power



1, Control un&rewind parts balance

 material both side.



Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

Air shaft

1, tight to material ,flat material ,

better printing



Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

 Web guide

1, Swift tracking print photo .

2, We have Ultrasonic web

guide this

 year.(pay extra money)



Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

Doctor Blade

1, Not spill the ink

Equip with ink pump, even the ink

Also have enclosed doctor blade

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

Ink pump

1, Suck the ink automatically

2, Adop the automatic circle system.

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

Ceramic Anilox Roller

1, Transfer ink evenly, improve the

printing effect.

2, 300-600 lines/in

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

hydraulic Up and down for printing roller

      1, Adopt the hydraulic pressure rising

 and down

the printing plate automatically

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure



The main list of detailed configuration

The main list of detailed configuration

Remark:the main motor and key parts can change which brand as your request.

1. Main motor(frequency control of motor speed):1pc (China brand)

2.  Link operation motor: 1pc (China brand)

3.  Control speed motor: 1pc (China brand)

4. Inverter of main motor:1set(China)

5. Air fan    (shanghai feng yang brand)

6. Ceramic dictyonotic roller:1pc/color(china brand)

7. Auto tension:1set(shanghai)

8. Air shaft: 1set(rui an brand of China)

9. Aluminum roller: 1set(shanghai,surface oxidation, motion and quietness equalization treatment)

10. Magnetic power:1set (rui an)

11. Rubber roller:1pc/color ( our factory)

12. low-voltage apparatus:(CHNT)

13. Switch: CHNT

14. bearing:1set (China)

15.  EPC system:1set (dong deng)





Optional     Optional ​ Device(need extra money to get perfect machine)

Optional device(need extra money to get perfect machine)

1. PLC Control

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

2. Auto pneumatic/hydraulic loading&unloading.

  • It is easy to transport material.

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

3. Joist barrow

It’s easy to lift the materials

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure

4. Video Inspection

Check the printing quality on the video screen.

Double Faced Fast Speed Paper Flexo Printing Machines Stack Structure
